AUTONICS

    In Stock (8 Available)

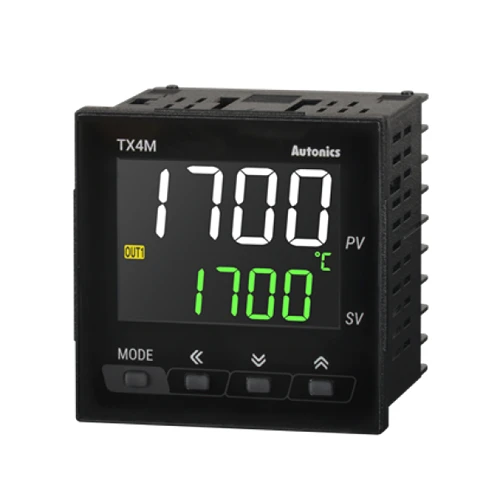

    TX4M-14S

    Temp Control, DIN W72XH72mm, LCD display 4 Digit, PID Control, SSR Drive Output, 1 Alarm Output, 100-240 VAC 50/60Hz


    $153.95 $128.29 / each
    1
    TX4M-14S
    AUTONICS
    FACTORY SEALED
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Display method4-digit 11-segment LCD
    Control methodON/OFF, P, PI, PD, PID
    Input specificationThermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)
    RTD: DPt100Ω, Cu50Ω
    Sampling cycle50ms
    Control outputSSR drive(12VDC ) [ON/OFF, phase, cycle]
    Option outputAlarm 1
    Power supply100-240VAC~ 50/60Hz
    Protection structureIP50(front panel)
    Display accuracy_RTD•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit
    •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
    Display accuracy_Thermocouple•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit
    •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
    Hysteresis(adjustable sensitivity)1 to 100℃/℉(0.1 to 50.0℃/℉) variable
    Proportional band0.1 to 999.9℃/℉
    Integral time0 to 9999 sec
    Derivative time0 to 9999 sec
    Control period0.5 to 120.0 sec
    Manual reset0.0 to 100.0%
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Insulation typeDouble insulation (mark: , dielectric strength between primary circuit and secondary circuit: 3kV)
    WeightApprox. 233g(approx. 143g)

    The exact weight of the cargo you've scheduled will be measured at the QUANTUM office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
