AFL-H20-LN

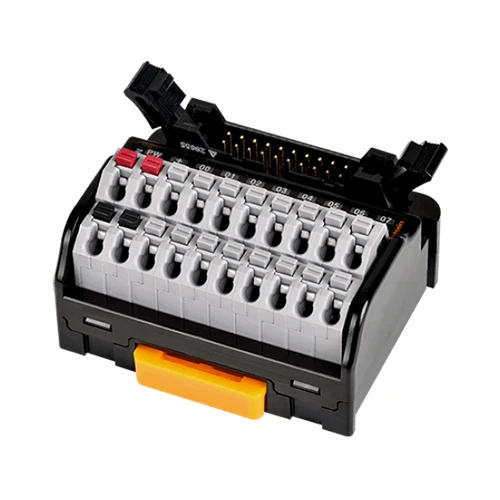

Screwless Interface Terminal Block, 20Pin, 20Terminal, NPN, 24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Number of connector pins | 20-pin |
|---|---|
| Number of terminal | 16 EA |
| Terminal type | Screwless |
| Terminal pitch | 5.0mm |
| Indicator | Power indicator: Red LED Operation indicator: Blue LED |
| Material | CASE: Polycarbonate, BASE: Polycarbonate |
| Approval |  |
| Weight | Approx. 86.3g(approx. 48.6g) |
| Rated voltage | 24VDC ⎓ ±10% |
| Rated current | ?1A |
| Insulation resistance | ≥1,000MΩ(at 500VDC megger) |
| Dielectric strength | 2,700 VAC~ 50/60 Hz for 1 minute |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP20(IEC standard) |
The exact weight of the cargo you've scheduled will be measured at the QUANTUM FIRST AUTOMATION office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
