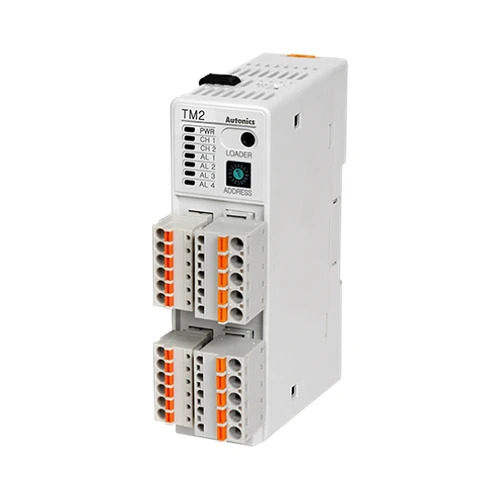

    TM2-42RE

    2 channel module, PID temp.controller, Relay Control output, 4 Alarms Sub output, Expansion module (No power / communication terminal)


    $347.71 $289.76 / each
    1
    TM2-42RE
    AUTONICS
    FACTORY SEALED
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Number of input channels2-channel
    Power supply24VDC  ±10%
    Power consumption≤ 5 W (for Max. load)
    Sampling cycle50ms(2-CH synchronous sampling)
    Alarm output250 VAC~ 3A 1a
    Option inputCT, Digital(DI-1/2)
    RS485 Comm.Modbus ASCII / RTU
    Control output250 VAC~ 3A 1a, 30 VDC 3A 1a
    Hysteresis1 to 100 (0.1 to 100) ℃/℉
    Display methodNon-display
    Control methodON/OFF, P, PI, PD, PID
    Proportional band0.1 to 999.9℃/℉
    Integral time0 to 9999 sec
    Derivative time0 to 9999 sec
    Control period0.1 to 120.0 sec
    Manual reset0.0 to 100.0%
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Insulation typeDouble insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV)
    Weight_Expansion moduleApprox. 208g(approx. 143g)
