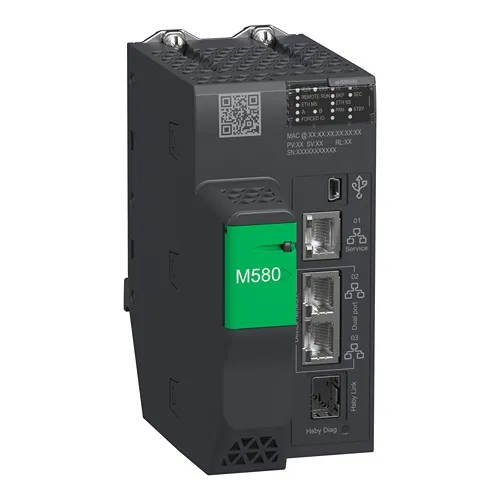

BMEH586040
Redundant Processor, Modicon M580, 64Mb, 61 Ethernet Devices, 31 Remote Io Racks Of X80 And Quantum Io
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M580 |
|---|---|
| product or component type | Redundant processor module |
| Number of racks | 1 |
|---|---|
| application specific I/O | Counter SSI encoder Serial link HART Accurate time stamping Motion control |
| Checks | Process control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP service port 2 Ethernet TCP/IP device network USB type mini B 1 Ethernet HSBY port |
| Number of remote I/O station | 31 - 2 X80 and Quantum drops |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 6 Ethernet communication module 24 AS-Interface module |
| Communication service | DIO scanner RIO scanner |
| Memory description | Expandable flash, 4 GB data storage Integrated RAM, 10 kB system memory Integrated RAM, 64 MB program and data Integrated RAM, 4096 kB HSBY data |
| Application structure | 1 cyclic/periodic master task 1 periodic fast task |
| Cybersecurity | Achilles certified DoS prevention IPSec SNMP logging Syslog protocol support Transport layer security Audit trail Embedded firewall Firmware signature Password protection Port hardening Secure communiction (HTTPS) Security log |
| Number of instructions per ms | 40 Kinst/ms 100 % Boolean 60 Kinst/ms 65 % Boolean + 35 % fixed arithmetic |
| Current consumption | 365 mA 24 V DC |
| MTBF reliability | 650000 H |
| marking | CE |
| Vibration resistance | 3 gn |
|---|---|
| Shock resistance | 30 gn |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE UL CSA RCM EAC Merchant Navy |
| Standards | IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G |
| Environmental characteristic | Hazardous location class I division 2 |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN) 1 LED (red) processor or system fault (ERR) 1 LED (red) I/O module fault (I/O) 1 LED (green) download in progress (DL) 1 LED (red) memory card or CPU flash fault (BACKUP) 1 LED (green/red) ETH MS (Ethernet port configuration status) 1 LED (green/red) Eth NS (Ethernet network status) 1 LED (green) peer processor running (REMOTE RUN) 1 LED (green) processor ID set to A (A) 1 LED (green) processor ID set to B (B) 1 LED (green) processor acting as Primary (PRIM) 1 LED (green) processor acting as Standby (STBY) 1 LED (green) I/O values overrided by user (FORCED IO) 1 LED (green) Hot standby link status (Hsby Diag) |
| net weight | 1.87 lb(US) (0.849 kg) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.43 in (8.700 cm) |
| Package 1 Width | 6.97 in (17.700 cm) |
| Package 1 Length | 9.84 in (25.000 cm) |
| Package 1 Weight | 30.97 oz (878.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 12.41 lb(US) (5.631 kg) |
