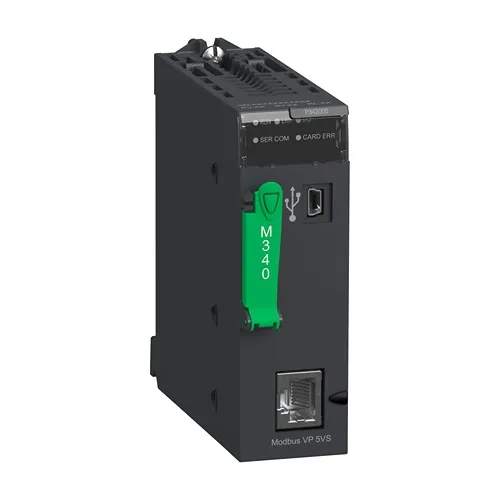

BMX-P34-2000
Processor, Modicon M340, Max 1024 Discrete, 256 Analog Io, Modbus
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M340 automation platform |
|---|---|
| product or component type | Processor module |
| Number of racks | 1 |
| Number of slots | 11 |
| Discrete I/O processor capacity | 1024 I/O single-rack configuration |
| Analogue I/O processor capacity | 256 I/O multi-rack configuration 66 I/O single-rack configuration |
| Number of application specific channel | 36 |
| Monitoring | Diagnostic counters Modbus Event counters Modbus |
| Control channels | Programmable loops |
|---|---|
| Integrated connection type | Non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex Non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex USB port 12 Mbit/s |
| Communication module processor capacity | 2 Ethernet communication module 4 AS-Interface module |
| Number of devices per segment | 0…32character mode) 0…32Modbus) |
| Number of devices | 2 point-to-point character mode 2 point-to-point Modbus |
| Bus length | 0.00…32.81 ft (0…10 m) serial link non isolated character mode segment 0.00…32.81 ft (0…10 m) serial link non isolated Modbus segment 0.00…3280.84 ft (0…1000 m) serial link isolated character mode segment 0.00…3280.84 ft (0…1000 m) serial link isolated Modbus segment 0.00…49.21 ft (0…15 m) character mode point-to-point 0.00…49.21 ft (0…15 m) Modbus point-to-point |
| Maximum tap links length | |
| Number of addresses | 0…248 character mode 0…248 Modbus |
| Requests | 1 K data bytes per request character mode 252 data bytes per RTU request Modbus 504 data bytes per ASCII request Modbus |
| Control parameter | One CRC on each frame (RTU) Modbus One LRC on each frame (ASCII) character mode One LRC on each frame (ASCII) Modbus |
| Memory description | Internal RAM 4096 kB Internal RAM 256 kB data Internal RAM 3584 kB program constants and symbols Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data |
| Maximum size of object areas | 128 kB unlocated internal data 16250 %Mi located internal bits 32464 %MWi internal words located internal data 32760 %KWi constant words located internal data |
| Default size of object areas | 128 %KWi constant words located internal data 256 %Mi located internal bits 512 %MWi internal words located internal data |
| Application structure | 1 cyclic/periodic master task 1 periodic fast task No auxiliary task 32 event tasks |
| Execution time per instruction | 0.18 µs Boolean 0.26 µs double-length words 0.38 µs single-length words 1.74 µs floating points |
| Number of instructions per ms | 4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic 5.4 Kinst/ms 100 % Boolean |
| System overhead | 0.2 ms fast task 1.05 ms master task |
| Current consumption | 72 mA 24 V DC |
| Supply | Internal power supply via rack |
| marking | CE |
| Status LED | 1 LED (green) processor running (RUN) 1 LED (red) I/O module fault (I/O) 1 LED (red) memory card fault (CARD ERR) 1 LED (red) processor or system fault (ERR) 1 LED (yellow) activity on Modbus (SER COM) |
| net weight | 0.44 lb(US) (0.2 kg) |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
|---|---|
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| protective treatment | TC |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE UL CSA RCM EAC Merchant Navy |
| Standards | EN 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G |
| Environmental characteristic | Hazardous location class I division 2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.5 cm) |
| Package 1 Width | 4.33 in (11.0 cm) |
| Package 1 Length | 4.53 in (11.5 cm) |
| Package 1 Weight | 8.47 oz (240.0 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.0 cm) |
| Package 2 Width | 11.81 in (30.0 cm) |
| Package 2 Length | 15.75 in (40.0 cm) |
| Package 2 Weight | 8.63 lb(US) (3.915 kg) |
