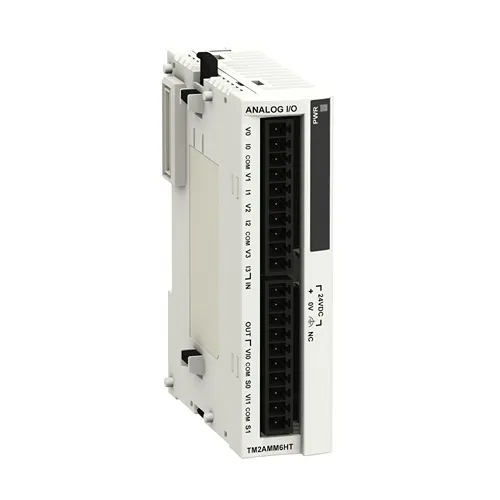

TM2AMM6HT
I/O Expansion Module, Modicon M238 Logic Controller, Twido, 4 Inputs Voltage/Current High Level, 2 Output, Wear Part
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M238 logic controller |
|---|---|
| product or component type | I/O expansion module |
| analogue input number | 4 |
| Input level | High level |
| Analogue input type | Current 4...20 mA non differential voltage 0...10 V non differential |
| analogue output number | 2 |
| Analogue output type | Current 4...20 mA Voltage 0...10 V |
| Cross talk |
| Range compatibility | Twido Advantys OTB |
|---|---|
| Analogue input resolution | 12 bits |
| analogue output resolution | 12 bits |
| LSB value | 2.5 mV voltage voltage 4 µA current current |
| Permissible continuous overload | 40 mA current 13 V voltage |
| Input impedance | >= 1 Ohm voltage |
| Load type | Resistive |
| Load impedance ohmic | >= 2000 Ohm voltage |
| Stabilisation time | 20 ms |
| Conversion time | 20 ms + 1 controller cycle time |
| Sampling duration | 16 ms |
| Acquisition period | 16 ms per channel + 1 controller cycle time |
| Measurement error | +/- 0.5 % of full scale 0...10 V 25 °C +/- 0.5 % of full scale 4...20 mA 25 °C +/- 0.9 % of full scale 0...10 V 25 °C +/- 0.9 % of full scale 4...20 mA 25 °C |
| Temperature coefficient | +/- 0.02 %FS/°C 0...10 V +/- 0.02 %FS/°C 4...20 mA +/-0.015 %FS/°C 0...10 V 0...10 V +/-0.015 %FS/°C 4...20 mA 4...20 mA |
| Repeat accuracy | +/- 1 %FS output +/-0.5 %FS input |
| Non-linearity | +/- 0.4 %FS current +/- 0.4 %FS voltage +/- 0.5 %FS current +/- 0.5 %FS voltage |
| Output error | +/- 1 %FS |
| Output ripple | |
| Total error | +/- 1.5 %FS current +/- 1.5 %FS voltage +/-1 %FS current current +/-1 %FS voltage voltage |
| Type of cable | Shielded cable |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…30 V |
| Electrical connection | 1 removable screw terminal block |
| Current consumption | 60 mA 5 V DC internal 80 mA 24 V DC external |
| net weight | 0.19 lb(US) (0.085 kg) |
| Dielectric strength | 1500 V between the I/O and the external supply circuit 800 V between I/O channel 800 V between the I/O and internal logic |
|---|---|
| Width | 0.93 in (23.5 mm) |
| Depth | 2.76 in (70 mm) |
| Height | 3.54 in (90 mm) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.93 in (7.446 cm) |
| Package 1 Width | 4.11 in (10.434 cm) |
| Package 1 Length | 4.89 in (12.419 cm) |
| Package 1 Weight | 6.01 oz (170.5 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 11.81 in (30.0 cm) |
| Package 2 Width | 11.81 in (30.0 cm) |
| Package 2 Length | 15.75 in (40.0 cm) |
| Package 2 Weight | 6.85 lb(US) (3.107 kg) |
