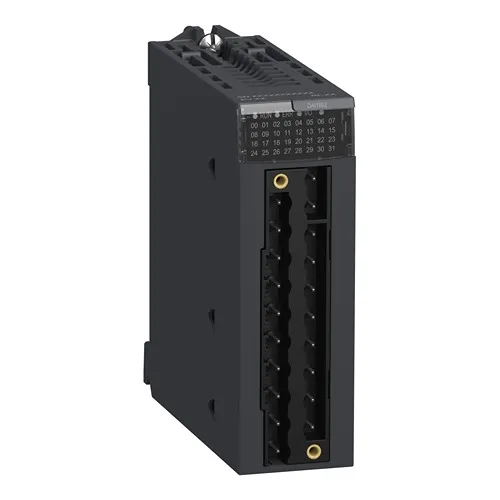

BMXDAI1602
Discrete Input Module, Modicon X80, 16 Inputs, 24V Ac Or Dc, Positive Or Negative
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon X80 |
|---|---|
| product or component type | Discrete input module |
| Discrete input number | 16 |
| Discrete input type | Isolated |
| Input type | Resistive |
| Discrete input voltage | 24 V DC positive or negative 24 V AC |
| Discrete input current | 3 mA 24 V AC 3.9 mA 24 V DC |
| Input compatibility | With 2-wire/3-wire proximity sensors IEC 60947-5-2 With 2-wire/3-wire proximity sensors AC IEC 61131-2 Type 1 |
|---|---|
| Network frequency | 50/60 Hz |
| network frequency limits | 47…63 Hz |
| Sensor power supply | 20...26 V AC 19...30 V DC |
| Current state 1 guaranteed | >= 2 mA AC >= 2 mA DC |
| Current state 0 guaranteed | |
| Input impedance | 6 kOhm |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 3 W |
| AC activation response time | 15 ms |
| AC deactivation response time | 20 ms |
| Paralleling of inputs | No |
| Typical current consumption | 76 mA 3.3 V DC |
| MTBF reliability | 1125000 H |
| Protection type | 1 external fuse per group of channel 0.5 A fast blow |
| Voltage detection threshold | > 18 V AC/DC sensor OK |
| Status LED | 1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O |
| net weight | 0.25 lb(US) (0.115 kg) |
| IP degree of protection | IP20 |
|---|---|
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC 50/60 Hz 1 minute, primary/secondary |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 4.65 in (11.800 cm) |
| Package 1 Length | 4.92 in (12.500 cm) |
| Package 1 Weight | 4.83 oz (137.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 5.23 lb(US) (2.374 kg) |
