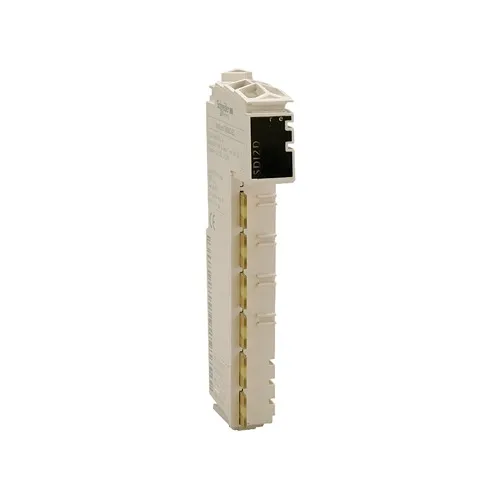

TM5SDI12D
Discrete Input Module, Modicon Tm5, 12Di, 24V Dc Sink, 1 Wire
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon TM5 |
|---|---|
| product or component type | Discrete input module |
| Discrete input number | 12 |
| Discrete input voltage | 24 V |
| Range compatibility | PacDrive LMC motion controller Modicon M258 Modicon LMC058 |
|---|---|
| Product compatibility | Motion controller PacDrive LMC Pro PacDrive LMC Pro 2 Logic controller PacDrive LMC Eco |
| discrete input voltage type | DC |
| Input voltage limits | 20.4...28.8 V |
| Discrete input logic | Sink |
| Discrete input current | 3.75 mA |
| Input impedance | 6.4 kOhm |
| Colour | White |
| Voltage state 0 guaranteed | |
| Voltage state 1 guaranteed | >= 15 V |
| Input filtering | |
| Isolation | 500 Vrms AC insulation between channel and bus No insulation between channels |
| Current consumption | 36 mA at 5 V DC bus 73 mA at 24 V DC all inputs On |
| Maximum power dissipation in W | 1.93 W |
| Local signalling | 1 LED green for power supply 1 LED red for power supply 12 LEDs green for input status |
| Electrical connection | 1 wire |
| marking | CE |
| net weight | 0.025 kg |
| Standards | CSA C22.2 No 213 IEC 61131-2 UL 508 CSA C22.2 No 142 |
|---|---|
| Product certifications | cULus C-Tick GOST-R CSA |
| Ambient air temperature for operation | -10…55 °C without derating (horizontal installation) -10…60 °C with derating factor (horizontal installation) -10…50 °C (vertical installation) |
| ambient air temperature for storage | -40…70 °C |
| Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20 conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 1 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Electromagnetic compatibility | Electrostatic discharge immunity test, 4 kV on contact conforming to IEC 61000-4-2 Electrostatic discharge immunity test, 8 kV in air conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3 Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test, 1 kV I/O conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test, 1 kV shielded cable conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test, 2 kV power lines conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test, 0.5 kV differential mode conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test, 1 kV common mode conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Conducted and radiated emissions conforming to CISPR 11 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 36.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 97 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.866 kg |
