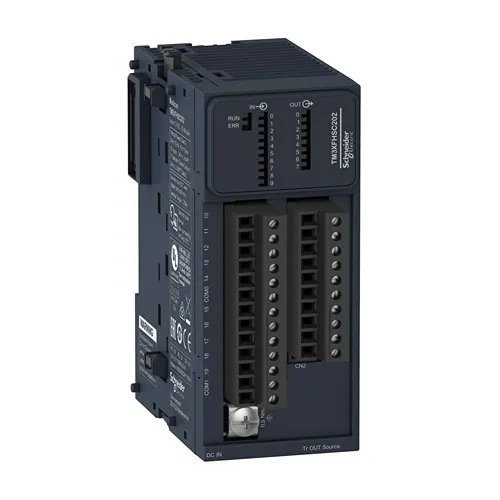

TM3XFHSC202
Counter Module, Modicon Tm3, High Speed, 2 Channels Hsc Event Management, 10 Inputs, 8 Outputs, Screw
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon TM3 |
|---|---|
| product or component type | Module hight speed counting |
| Range compatibility | Modicon M262 |
| [Us] rated supply voltage | 24 V DC external supply - 15...20 %) |
| Number of input channels | 10 |
| Number of output channels | 8 |
| Discrete I/O number | 18 |
| Current consumption | 100 mA 5 V DC 50 mA 24 V DC |
|---|---|
| Counting frequency | 200 kHz |
| Discrete input voltage | 24 V DC |
| Electrical circuit type | Standard input Latch input |
| Discrete input logic | Sink or source |
| Output voltage | 24 V DC transistor output |
| Output voltage limits | 30 V DC |
| Discrete output current | 300 mA fast output Q0...Q7) |
| discrete output logic | Source |
| Output protection type | Against overload and short-circuits |
| Reset | Automatic reset |
| Local signalling | 1 LED I/O 1 LED RUN 1 LED ERR |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Services | HSC simple One shot/Modulo HSC main single phase One shot/Modulo/Event counting HSC main dual phase Modulo/Free-large Period meter Edge to Edge, Edge to Opposite |
| Counting mode | 2 main expert function (main counting function, frequency meter, period meter) Max 8 simple counting function |
| Event management | 8 maximum per PLC Thresholds |
| Height | 3.54 in (90 mm) |
| Depth | 3.35 in (85 mm) |
| Width | 1.54 in (39 mm) |
| net weight | 5.29 oz (150 g) |
| Product certifications | CSA cULus IACS E10 RCM CE UKCA EAC |
|---|---|
| Standards | CSA C22.2 No 142 ANSI/ISA 12-12-01 UL 1604 CSA C22.2 No 213 EN/IEC 61131-2:2007 UL 508 |
| Resistance to electrostatic discharge | 8 kV in air EN/IEC 61000-4-2 4 kV on contact EN/IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.14 V/yd (10 V/m) 80 MHz...1 GHz EN/IEC 61000-4-3 2.74 V/yd (3 V/m) 1.4 GHz...2 GHz EN/IEC 61000-4-3 0.91 V/yd (1 V/m) 2 GHz...3 GHz EN/IEC 61000-4-3 |
| Resistance to fast transients | 2 kV alimentation cableEN/IEC 61000-4-4 1 kV Ethernet lineEN/IEC 61000-4-4 1 kV serial linkEN/IEC 61000-4-4 1 kV inputEN/IEC 61000-4-4 1 kV transistor outputEN/IEC 61000-4-4 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz EN/IEC 61000-4-4 |
| Electromagnetic emission | Conducted emissions 120...69 dBµV/m QP10…150 kHz EN/IEC 55011 Conducted emissions 63 dBμV/m QP1.5…30 MHz EN/IEC 55011 Radiated emissions 40 dBµV/m class A30…230 MHz EN/IEC 55011 Conducted emissions 79...63 dBμV/m QP150…1500 kHz EN/IEC 55011 Radiated emissions 47 dBµV/m class A230…1000 MHz EN/IEC 55011 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) horizontal installation -4…122 °F (-20…50 °C) vertical installation |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 10…95 %, without condensation in operation) 10…95 %, without condensation in storage) |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0.00…9842.52 ft (0…3000 m) |
| Vibration resistance | 3.5 mm 2…8.4 Hz DIN rail 1 gn 8.4…200 Hz DIN rail 3.5 mm 2…8.4 Hz panel 1 gn 8.4…200 Hz panel |
| Shock resistance | 15 gn 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.09 in (10.4 cm) |
| Package 1 Width | 4.88 in (12.4 cm) |
| Package 1 Length | 2.83 in (7.2 cm) |
| Package 1 Weight | 11.29 oz (320.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 11.81 in (30 cm) |
| Package 2 Width | 11.81 in (30 cm) |
| Package 2 Length | 15.75 in (40 cm) |
| Package 2 Weight | 12.70 lb(US) (5.76 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 144 |
| Package 3 Height | 29.53 in (75 cm) |
| Package 3 Width | 23.62 in (60 cm) |
| Package 3 Length | 31.50 in (80 cm) |
| Package 3 Weight | 98.19 lb(US) (44.54 kg) |
