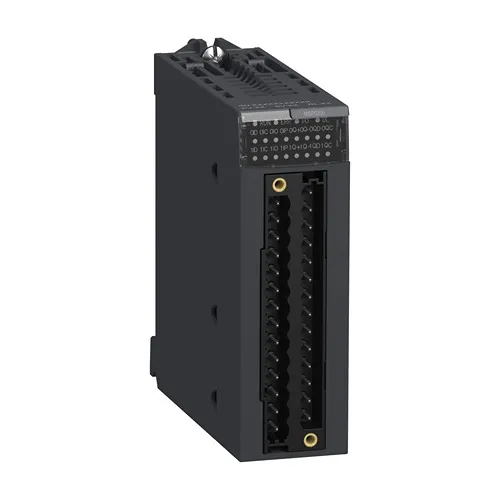

BMXMSP0200
Pto Module, Modicon X80, 2 Channels, 4 I, 24V Dc, 4.3Ma, 2 Connectors, 28 Pins
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon X80 |
|---|---|
| product or component type | PTO module |
| Number of channels | 2 |
| Number of inputs | 4 |
| Discrete input type | Current sink yes origin input IEC 61131-2 type 3 Current sink yes proximity input and limit switch input IEC 61131-2 type 3 Current sink or source counter in position input IEC 61131-2 type 3 Current sink or source drive ready, emergency input IEC 61131-2 type 3 |
| Input compatibility | 2-wire/3-wire proximity sensor 19.2…30 V IEC 947-5-2 |
| Output compatibility | Signal converter (USIC) RS422, 7 mA input Source input, 5 V to 24 V |
| Output frequency | 200 kHz 100 kHz 200 kHz |
| Operating threshold | > 12 V no error supply voltage > 8 V error supply voltage |
|---|---|
| Input voltage | 24 V DC |
| Input current | 4.3 mA |
| Voltage state 1 guaranteed | >= 11 V |
| Current consumption | 35 mA 24 V DC preactuator 150 mA 3.3 V DC typical 200 mA 3.3 V DC maximum |
| Current state 1 guaranteed | >= 2 mA |
| Voltage state 0 guaranteed | 5 V |
| Current state 0 guaranteed | |
| Response time | |
| Number of outputs | 1 pulse output 2 auxiliary output |
| Preactuator voltage detection threshold | > 14 V error preactuator voltage pulse output > 14 V no error preactuator voltage pulse output |
| Output voltage | 24 V DC |
| Output voltage limits | 19...30 V |
| discrete output current | 50 mA |
| Current per channel | 0.4 A |
| Maximum leakage current | 0.05 mA at state 0 |
| [Ures] residual voltage | 0.15 V at state 1 |
| Response time on output | 1.2...1.5 ms on appearance 1.2...1.5 ms on disappearance |
| Load impedance ohmic | 15000 Ohm |
| Output overload protection | By current limiter and electronic circuit breaker |
| Output short-circuit protection | By current limiter and electronic circuit breaker |
| Reverse polarity protection | By reverse mounting diode on output Integrated on input |
| Insulation between channels | No insulated |
| Insul btwn prim and second | 1500 Vrms |
| Insulation resistance | > 10 MOhm |
| Local signalling | Module operating (RUN) 1 LED green) External fault (I/O) 1 LED red) Internal fault, module failure (ERR) 1 LED red) Download (DL) 1 LED green) Channel status (CH00) 8 LEDs green) Channel status (CH01) 8 LEDs green) |
| Electrical connection | 2 connectors 28 pins |
| module format | Standard |
| Product certifications | CE UL CSA RCM EAC Merchant Navy ATEX zone 2/22 IECEx zone 2/22 |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
|---|---|
| Derating factor | Without |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive |
| Standards | EN/IEC 61131-2 EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G EN/IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.13 in (5.400 cm) |
| Package 1 Width | 4.53 in (11.500 cm) |
| Package 1 Length | 4.61 in (11.700 cm) |
| Package 1 Weight | 5.19 oz (147.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 5.57 lb(US) (2.527 kg) |
