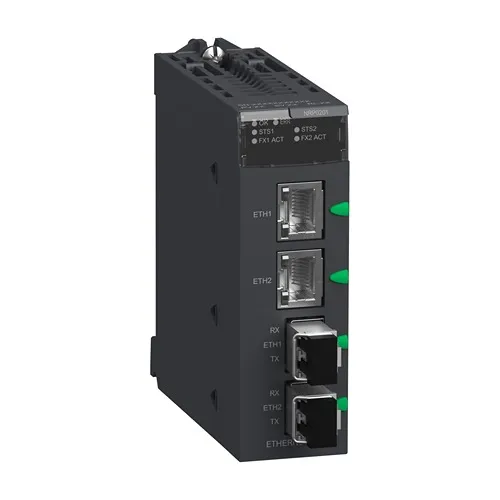

BMXNRP0201
Fiber Converter Module, Modicon X80, Single Mode
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon X80 |
|---|---|
| product or component type | Fibre optic repeater |
| optic fiber type | Single mode |
| Rated voltage | 24 V |
|---|---|
| Current consumption | 140 mA typical 200 mA maximum |
| Function available | Hot swap |
| Number of port | 2 RJ45 100BASE-TX IEEE 802.3u 2 fiber optic 100BASE-FX IEEE 802.3u |
| Local signalling | Power supply status 1 LED green) Error condition (ERR) 1 LED red) Link status 2 LEDs green) Fiber port state and activity 2 LEDs green) |
| Wavelength | 0.000051575 in (1310 nm) |
| Operating distance | 0...15000 m |
| Attenuation | -15…-8 dB 9/125 µm) |
| Rise/fall time | 2.5 ns |
| Receiver sensitivity | - 31...- 8 dBm |
| marking | CE |
| Width | 1.26 in (32 mm) |
| Height | 3.94 in (100 mm) |
| Depth | 3.39 in (86 mm) |
| net weight | 7.16 oz (203 g) |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
|---|---|
| ambient air temperature for storage | -40…158 °F (-40…70 °C) |
| Relative humidity | 0…95 % |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE RCM CSA EAC Merchant Navy UL |
| Standards | EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| Dielectric strength | 1400 V DC between field and bus 500 V DC between channels |
| IP degree of protection | IP20 |
| Operating altitude | 0...4000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.28 in (5.800 cm) |
| Package 1 Width | 4.33 in (11.000 cm) |
| Package 1 Length | 5.12 in (13.000 cm) |
| Package 1 Weight | 8.82 oz (250.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 14 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 8.47 lb(US) (3.840 kg) |
