AUTONICS

bs5-t2m-p AUTONICS

bs5-t2m-p
left swipe Rotate image right swipe

In Stock (45 Available)

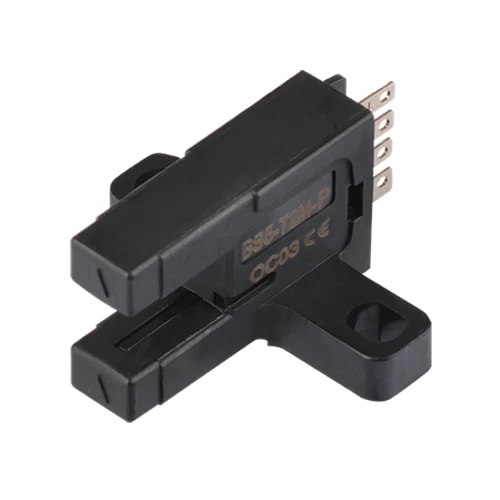

BS5-T2M-P

Photomicro Sensor, Light & Dark On, Connector Type, PNP Output, T-Type, 5-24 VDC (Req. Soket CT-01 or CT-02 Sold Separately)

SENSORS

||

AUTONICS

5.00 10

10 Review(s)
$18.22 $15.18 / each
1
BS5-T2M-P
AUTONICS
FACTORY SEALED
BS5-T2M-P - Datasheet.pdf
  • Quality-checked industrial automation parts
  • Secure ordering with responsive customer support
  • Worldwide shipping for critical replacement parts
Fast Delivery
Top Brands
Worldwide Delivery
Secure Transaction
Add To Cart Buy Now

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwide Fast Shipping.

Sensing typeThrough-beam type(not modulated)
Sensing distance5mm(fixed)
Sensing targetOpaque material of min. Ø0.8×2mm
Light sourceInfrared LED(940nm)
Response timeLight ON: Max. 20?,
Dark ON: Max. 100?
Power supply5-24VDC ⎓ ±10%(ripple P-P : max. 10%)
Current consumptionMax. 30mA
Operation modeLight ON/Dark ON(set by control terminal block)
Control outputPNP open collector
Connection typeConnector type
Environment_Ambient illuminationFluorescent lamp: Max. 1,000lx(received illumination)
Environment_Ambient temperature-20 to 55℃, storage : -25 to 85℃
Protection structureIP50
ApprovalCE
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
Response frequency2kHz
Hysteresis(distance)0.05mm
MaterialPolybutylene terephthalate
WeightApprox. 50g(approx. 30g)

The exact weight of the cargo you've scheduled will be measured at the QUANTUM FIRST AUTOMATION office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
