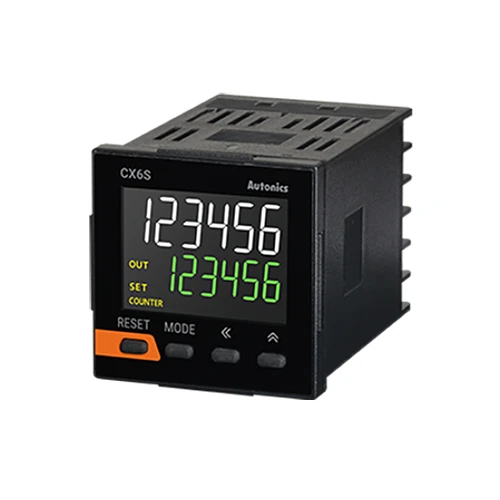

CX6S-1P2F
Counter/Timer, W48xH48mm, 6-Digit, LCD, 1 Preset, Free Voltage(24-240VAC/VDC) Input, Prescale value setting, Relay SPDT(1c) 250VAC 3A, 24-48VDC / 24VAC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Display method | Counting display part- 2-digit 7-segment LCD, 4-digit 11-segment LCD Setting value display part- 6-digit 7-segment LCD |
|---|---|
| Operation method | Counter: Count up, Count down, Count up/down Timer: Count up, Count down |
| Terminal | Terminal block |
| Output Operation | SIGNAL ON DELAY, POWER ON DELAY, ON-OFF DELAY |
| Power supply | 24VAC~ 50/60Hz, 24-48VDC ⎓ |
| Time operation | POWER ON START SIGNAL ON START |
| Signal Input Method | Free voltage input |
| Max. Counting Speed | 20 [cps] |
| Min. signal Width | 25ms |
| Memory Protection | Approx. 10 years |
| Setting range | 0.001 sec to 999.999 sec, 0.01 sec to 9999.99 sec, 0.1 sec to 99999.9 sec, 1 sec to 999999 sec, 0.01 sec to 99 min 59.99 sec, 0.1 sec to 999 min 59.9 sec, 1 sec to 9999 min 59 sec, 0.1 min to 99999.9 min, 1 min to 999999 min, 1 sec to 99 hour 59 min 59 sec, 1 min to 9999 hour 59 min, 0.1 hour to 99999.9 hour |
| Control output_Type | 1-stage preset |
| Control output_Relay | SPDT (1c): 1 |
| Protection structure | IP50(front panel) |
| Approval |  |
| Counter_Counting range | -99999 to 999999 |
| Counter_Scale | Decimal point up to fifth digit |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 154g(approx. 109g) |
