In Stock (2 Available)

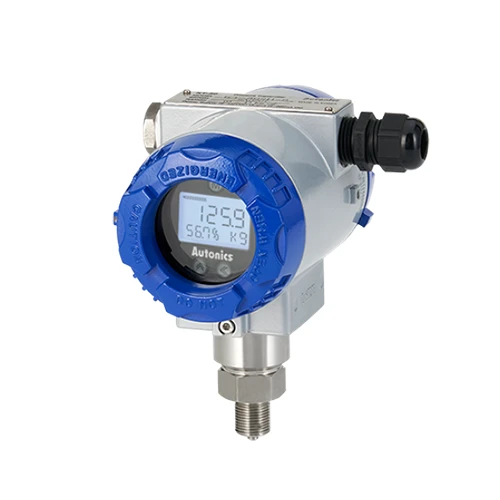

    Pressure Transmitter, Absolute, 0~7kg/cm2, with Mounting bracket, PF3/8(STD)

    $865.03 $720.86 / each
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.

    Measured materialsLiquid, gas, oil (except corrosive environment of stainless steel type 316)
    Power supply9-45VDC ⎓
    Display methodPV display part: 7-segment 5-digit, Parameter display part: 16-segment 8-digit, Bar LED: 52
    Display range-9999 to 99999
    OutputDC4-20mA (2-wire) Low-limit 3.8mA, high-limit 22.8mA
    Accuracy±0.3% of F.S.
    Environment_Ambient temperature-20 to 70 ?, storage: -40 to 85 ?
    Environment_Ambient humidity0 to 85%RH, storage: 0 to 85%RH
    MaterialBody: aluminum (AlDc.8S), cover O-Ring: buna N, diaphragm: stainless steel 316, connections: stainless steel 316
    Explosion classEx d IIC T6
    Measurement pressureAbsolute pressure
    Pressure range0 to 0.7MPa
    Protection structureIP67(IEC standard)
    WeightApprox. 1.7kg (approx. 1.4kg)
    Pressure portG3/8 (PF, standard)
    Mounting bracketWith bracket
