MGAM50S8-1013-B-F-S-24

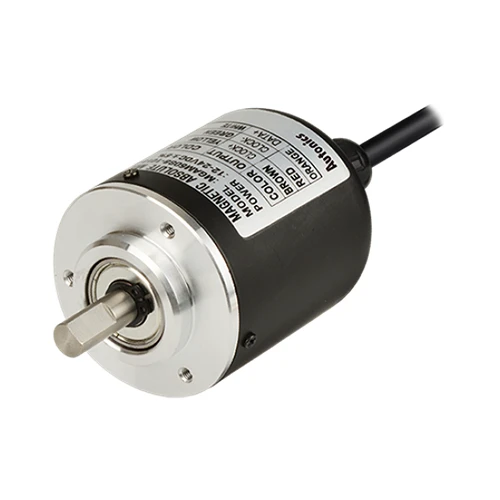

Magnetic Multi-Turn Absolute Rotary Encoder, Ø50mm, 8mm Shaft, Single Turn 10Bit(1024 Division), Multi-Turn 13Bit(8192 Revolution), Binary Code, Output Value Increase at CW Direction, SSI Line Drive OutPut, 12-24VDC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Shaft outer diameter | Ø8mm |
|---|---|
| Max. allowable revolution | 3000rpm |
| Starting torque | Max. 70gf.cm(max. 0.0069N.m) |
| Resolution | Single-Turn: 1024-division, Multi-Turn: 8192-revolution |
| Output code | Binary Code |
| Rotating direction | CW |
| Control output | SSI(synchronous serial interface) |
| Power supply | 12-24VDC ⎓ ±5%(ripple P-P: max. 5%) |
| Connection type | Axial cable type |
| Approval |  |
| Electrical specification_Output_Positioning error | ±1-bit(LSB: Least Significant Bit) |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket, Coupling |
| Weight | Approx. 391g(approx. 261g) |
