BANNER-ENGINEERING

    Factory Stock (1 Available)

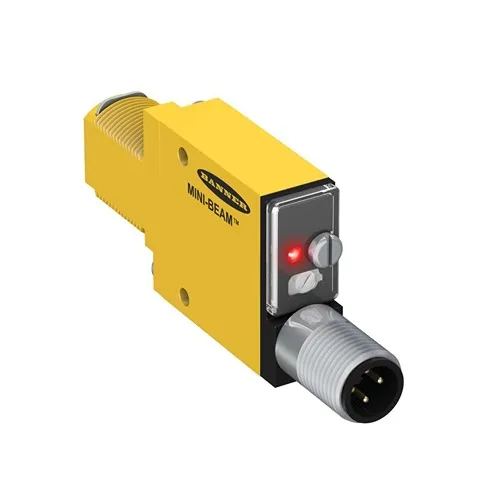

    SM312FQD

    Mini-Beam: Infrared 880 Nm Glass Fiber Optic; Range: Depends On Fiber; Input: 10-30 V Dc; Output: Bipolar: 1 Npn; 1 Pnp; 4-Pin M12 Integral Qd;


    $149.18 $124.32 / each
    1
    SM312FQD
    BANNER-ENGINEERING
    FACTORY SEALED
    SM312FQD.pdf
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    IP Rating
    IP67
    Power
    DC
    Accepts Fiber Termination Type
    Glass Fiber Termination
    NEMA / UL Type Rating
    NEMA 4X
    Housing Style
    Rectangular w/M18 Mount
    Primary Housing Material
    Thermoplastic
    Input Output
    Discrete
    Color LED - Amplifiers
    Infrared
    Fiber Type
    Glass Only
    Output
    Bipolar (NPN & PNP)
    Connection
    Integral QD
    Quick Disconnect Type
    M12
    Output Type (Specific)
    Single Discrete
    Repeatability (µs)
    300
    Number of Pins
    4
    Max Op. Temperature (°C)
    70
    Min Op. Temperature (°C)
    -20
    Max Op. Relative Humidity (%)
    90% @ 50°C
    Special Feature: Remote Teach
    No
    Intrinsically Safe
    No
    Adjustments
    Potentiometer
    Power Supply/Supply Voltage
    10-30 V dc
    Delay at Power-up (ms)
    100
    Indicator Display Type
    Indicator LEDs
    Minimum response time (ms)
    1
    Special Feature: Bussable Power
    No
    Feature: Audible
    No
    Feature: Quick Disconnect
    Yes
    Housing Material
    Thermoplastic
