AUTONICS

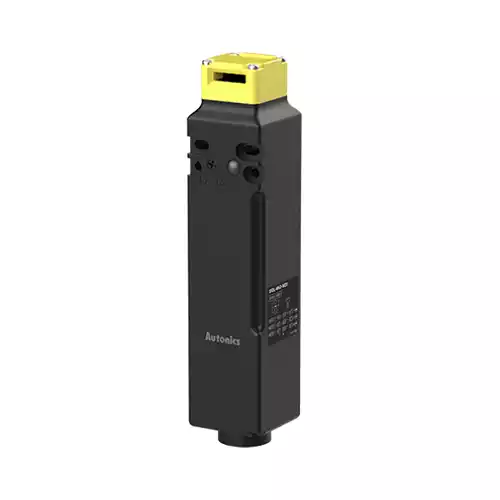

    SFDL-SD-G1-2K

    Safety Door Lock Switch, Solenoied Lock/Mechanical Release, 4-Contact(connected), Lock:2NC, Door:2NC, G1/2 Gland port size, Terminal type, Special key type, IP67(Except head)


    $364.44 $303.70
    1
    SFDL-SD-G1-2K
    0
    AUTONICS
    Brand New
    12 Months
    Out Of Stock

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Directing opening forceMin. 80N
    Directing opening distanceMin. 10mm
    Locking pullout strengthMin. 1,300N
    Operating speed0.05 to 1m/s
    Operating frequencyMax. 20/min
    Life cycle_MechanicalMin. 1,000,000 operations (20/min)
    Vibration_Malfunction0.35mm single amplitude at frequency of 10 to 55Hzin each X,Y,Z direction for 10 min
    Shock1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
    Shock_Malfunction1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times
    Environment_Ambient temperature-10 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Protection structureIP67(IEC standerd, except head)
    Applicable cableAWG22
    MaterialHead: zinc, case: polyamide 66, operation key: stainless steel 304
    Sold separatelyOperation key
    WeightApprox. 440g(approx. 375g)
    Rated load voltage & currentResistive load : 1A/120VAC~, 0.22A/125VDC
    Inductive load : AC-15 1A/120VAC~, DC-13 0.22A/125VDC
    Dielectric strength_Between the terminals of same polarity1.5kV
    Dielectric strength_Between the terminals of different polarity1.5kV
    Dielectric strength_Between each terminal and non-live part2.5kV
    Insulation resistance100MΩ or more (500VDC megger basis)
    Contact resistanceMax. 200mΩ
    Life cycle_ElectricalMin. 100,000 operations (125VAC~/1A)
    Conditional short circuit current100A
    Rated voltage24VDC
    Current consumptionSupplying power: 0.26A
    Normal: max. 0.2A (approx. 3 seconds after supplying power)
    Insulation classClass E
