AUTONICS

t3s-b4sk8f-n AUTONICS

t3s-b4sk8f-n
left swipe Rotate image right swipe

In Stock (1 Available)

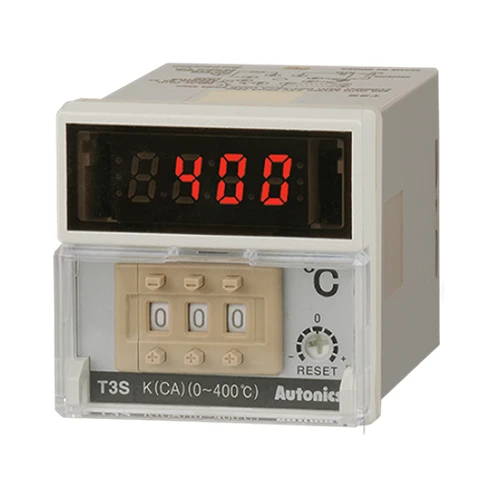

T3S-B4SK8F-N

Temp Control, 1/16 DIN, On/Off-Proportional, SSR Driver Out, K Thermocouple, 799 F, 100-240 VAC, New Type

TEMP. CONTROL

||

AUTONICS

5.00 10

10 Review(s)
$164.27 $136.89 / each
1
T3S-B4SK8F-N
AUTONICS
FACTORY SEALED
T3S-B4SK8F-N - Datasheet.pdf
  • Quality-checked industrial automation parts
  • Secure ordering with responsive customer support
  • Worldwide shipping for critical replacement parts
Fast Delivery
Top Brands
Worldwide Delivery
Secure Transaction
Add To Cart Buy Now

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwide Fast Shipping.

Display method3-digit 7-segment LED
Control methodON/OFF control, P control
Input specificationThermocouple: K(CA)
Sampling cycle100ms
Setting range0 to 800℃/℉
Control outputSSR drive(12VDC EQ) [ON/OFF]
Power supply100-240VAC~ 50/60Hz
Display accuracy_Thermocouple•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
•Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Hysteresis(adjustable sensitivity)F.S. 0.5%
Proportional bandF.S. 3%
Proportional cycle20 sec
RESET rangeF.S. -3 to 3% variable
Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
WeightApprox. 135g(approx. 95g)
