AUTONICS

    Out Of Stock

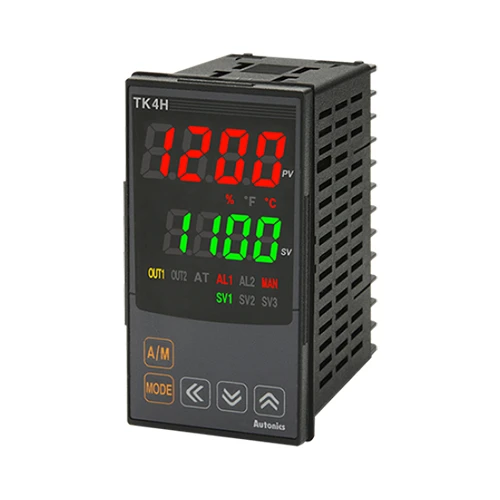

    TK4H-R4CR

    Temp Control, DIN W48XH96mm, 1 Alarm+PV transmission, Current or SSR Drive Output 1, Relay Contact Output 2, 100-240VAC


    $194.35 $161.96 / each
    1
    TK4H-R4CR
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Display method4-digit 7-segment LED
    Control methodON/OFF, P, PI, PD, PID
    Input specificationThermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II
    RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω
    Analog: 0-100mV, 0-5V, 1-5V, 0-10V
    0-20mA, 4-20mA
    Sampling cycle50ms
    Control output 1Current(DC0/4-20mA) or SSR drive(11VDC EQ) [ON/OFF]
    Control output 2Relay(250VAC~ 3A)
    Option inputCT, Digital(DI-1/2)
    Option outputAlarm 1, Transmission(DC4-20mA)
    Power supply100-240VAC~ 50/60Hz
    Protection structureIP65(front panel)
    Display accuracy_RTD•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit
    •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
    Display accuracy_Thermocouple•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit
    •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
    Display accuracy_Analog•At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit
    •Out of range of room temperature: ±0.5℃% F.S. ±1-digit
    Display accuracy_CT input±5% F.S. ±1-digit
    Hysteresis(adjustable sensitivity)RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100-digit
    Proportional band0.1 to 999.9℃/℉(0.1 to 999.9%)
    Integral time0 to 9999 sec
    Derivative time0 to 9999 sec
    Control periodRelay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec
    Manual reset0.0 to 100.0%
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    Insulation typeDouble insulation or reinforced insulation(mark: INS, dielectric strength between the measuring input part and the power part: 2kV)
    WeightApprox. 211g(approx. 141g)
