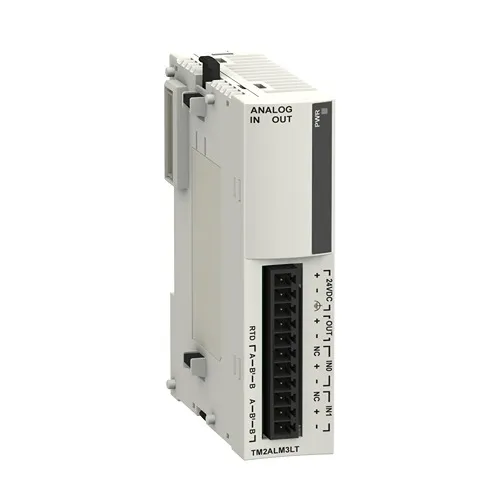

TM2-ALM3LT
Analog Input/Output Module, Modicon M238 Logic Controller, 2 Inputs Thermocouple/Temp Low Level, 1 Output
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M238 logic controller |
|---|---|
| product or component type | Input/output analog module |
| analogue input number | 2 |
| Input level | Low level |
| Analogue input type | 3-wire Pt probe temperature probe - 100...500 °C differential thermocouple 0...1200 °C thermocouple J differential thermocouple 0...1300 °C thermocouple K differential thermocouple 0...400 °C thermocouple T differential |
| analogue output number | 1 |
| Analogue output type | Current 4...20 mA Voltage 0...10 V |
| Cross talk |
| Range compatibility | Advantys OTB Twido |
|---|---|
| Analogue input resolution | 12 bits |
| analogue output resolution | 12 bits |
| LSB value | 2.5 mV voltage voltage 4.8 µA current current 0.1 °C thermocouple 0.15 °C temperature probe |
| Input impedance | >= 1 MOhm |
| Load type | Resistive |
| Load impedance ohmic | >= 2000 Ohm voltage |
| Stabilisation time | 20 ms |
| Conversion time | 20 ms + 1 controller cycle time |
| Sampling duration | 20 ms temperature probe 60 ms thermocouple |
| Acquisition period | 60 ms per channel + 1 controller cycle time thermocouple 80 ms per channel + 1 controller cycle time |
| Measurement error | +/- 0.2 % of full scale - 100...500 °C 3-wire Pt probe 25 °C +/- 0.2 % of full scale 0...10 V 0...10 V 25 °C +/- 0.2 % of full scale 4...20 mA 4...20 mA 25 °C 0.2 % of full scale +/- 4 °C 0...1200 °C thermocouple J 25 °C 0.2 % of full scale +/- 4 °C 0...1300 °C thermocouple K 25 °C 0.2 % of full scale +/- 4 °C 0...400 °C thermocouple T 25 °C |
| Temperature coefficient | +/-0.006 %FS/°C - 100...500 °C 3-wire Pt probe +/-0.006 %FS/°C 0...1200 °C thermocouple J +/-0.006 %FS/°C 0...1300 °C thermocouple K +/-0.006 %FS/°C 0...400 °C thermocouple T +/-0.015 %FS/°C 0...10 V 0...10 V +/-0.015 %FS/°C 4...20 mA 4...20 mA |
| Repeat accuracy | +/-0.5 %FS input/output |
| Non-linearity | +/- 0.2 %FS current current +/- 0.2 %FS temperature probe +/- 0.2 %FS thermocouple +/- 0.2 %FS voltage voltage |
| Output error | +/- 1 %FS |
| Output ripple | |
| Total error | +/-1 %FS current current +/-1 %FS temperature probe +/-1 %FS thermocouple +/-1 %FS voltage voltage |
| Type of cable | Shielded cable |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…30 V |
| Electrical connection | 1 removable screw terminal block |
| Current consumption | 50 mA 24 V DC external 50 mA 5 V DC internal |
| net weight | 0.19 lb(US) (0.085 kg) |
| Dielectric strength | 500 V between I/O channel 500 V between the I/O and the external supply circuit 500 V between the I/O and internal logic |
|---|---|
| Width | 0.93 in (23.5 mm) |
| Depth | 2.76 in (70 mm) |
| Height | 3.54 in (90 mm) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.76 in (7.0 cm) |
| Package 1 Width | 4.13 in (10.5 cm) |
| Package 1 Length | 4.92 in (12.5 cm) |
| Package 1 Weight | 6.95 oz (197.0 g) |
