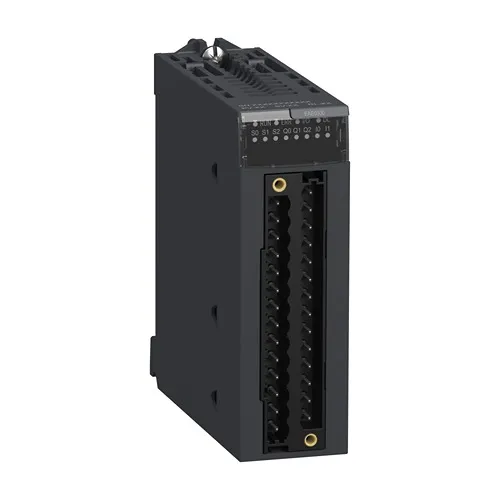

BMXEAE0300
Encoder Interface Module, Modicon X80, Ssi, 3 Channels, Up To 31Databits, 1Mbauds
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon X80 |
|---|---|
| product or component type | Encoder interface module |
| Function available | Offset Compare Modulo Reduction Capture |
| Number of channels | 3 SSI channel |
| Number of outputs | 1 24 V DC reflex digital output for each SSI channel |
| Number of inputs | 2 24 V DC capture digital inputs for the 3 SSI channels |
| Data format | 8...31 bits |
|---|---|
| Transmission rate | 500 kbauds 200 kbauds 1 Mbauds 100 kbauds |
| Refresh time | 1 ms |
| Input compatibility | 24 V DC SSI absolute encoder 19.2…30 V)200 mA per channel |
| Dielectric strength | 1400 V DC 60 s |
| [Us] rated supply voltage | 19.2...30 V DC, 24 V DC, |
| Protection type | Overvoltage protection DC |
| Current consumption | 150 mA 3.3 V DC back plane, (typical) 250 mA 3.3 V DC back plane, (maximum) |
| net weight | 0.30 lb(US) (0.138 kg) |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
|---|---|
| Operating altitude | 0...4000 m |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE RCM CSA EAC Merchant Navy UL |
| Standards | EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 4.33 in (11.000 cm) |
| Package 1 Length | 4.53 in (11.500 cm) |
| Package 1 Weight | 5.89 oz (167.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 6.17 lb(US) (2.800 kg) |
