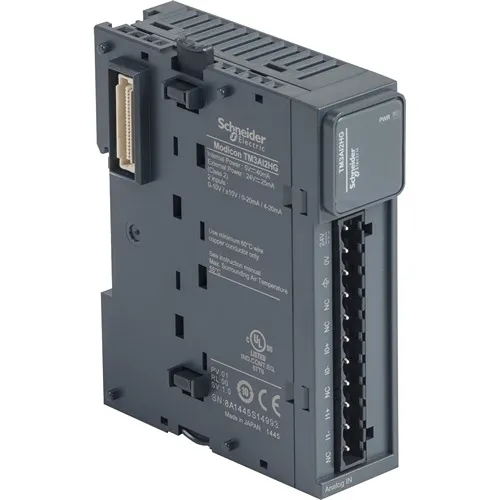

TM3AI2HG
Analog Input Module, Modicon Tm3, 2 Inputs High Resolution, Spring, 24V Dc
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon TM3 |
|---|---|
| product or component type | Analog input module |
| Range compatibility | Modicon M221 Modicon M241 Modicon M251 Modicon M262 |
| analogue input number | 2 |
| Analogue input type | Current 4...20 mA current 0...20 mA voltage 0...10 V voltage - 10...10 V |
| Analogue input resolution | 16 bits 15 bits + sign |
|---|---|
| Permissible continuous overload | 13 V voltage 40 mA current |
| Input impedance | >= 1 MOhm voltage |
| LSB value | 2.44 mV 0...10 V voltage 4.88 mV - 10...10 V voltage 4.88 µA 0...20 mA current 3.91 µA 4...20 mA current |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Sampling duration | 1 ms |
| Absolute accuracy error | +/- 0.1 % of full scale at 77 °F (25 °C) +/- 1 % of full scale |
| Temperature drift | +/- 0.006 %FS/°C |
| Repeat accuracy | +/-0.5 %FS |
| Non-linearity | +/- 0.01 %FS |
| Cross talk | |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Type of cable | Twisted shielded pairs cable |
| Current consumption | 30 mA 5 V DC via bus connector no load 40 mA 5 V DC via bus connector full load 25 mA 24 V DC via external supply |
| Local signalling | PWR 1 LED green) |
| Electrical connection | 11 x 2.5 mm² removable spring terminal block pitch 5.08 mm for inputs and supply |
| Insulation | Between input and supply 1500 V AC Between input and internal logic 500 V AC |
| marking | CE |
| Surge withstand | 1 kV power supply common mode IEC 61000-4-5 0.5 kV power supply differential mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.54 in (90 mm) |
| Depth | 2.76 in (70 mm) |
| Width | 0.93 in (23.6 mm) |
| net weight | 0.22 lb(US) (0.1 kg) |
| Standards | IEC 61131-2 |
|---|---|
| Product certifications | CE UKCA RCM EAC cULus cULus HazLoc |
| Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.14 V/yd (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.74 V/yd (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.91 V/yd (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 |
| Resistance to magnetic fields | 98.43 A/ft (30 A/m) IEC 61000-4-8 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 I/O) |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
| Immunity to microbreaks | 10 ms |
| Ambient air temperature for operation | 14…131 °F (-10…55 °C) horizontal installation 14…95 °F (-10…35 °C) vertical installation |
| ambient air temperature for storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 %, without condensation in operation) 10…95 %, without condensation in storage) |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0.00…9842.52 ft (0…3000 m) |
| Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail 3 gn 8.4…150 Hz DIN rail |
| Shock resistance | 15 gn 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.95 in (7.5 cm) |
| Package 1 Width | 4.13 in (10.5 cm) |
| Package 1 Length | 4.92 in (12.5 cm) |
| Package 1 Weight | 7.05 oz (200.0 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 5.91 in (15.0 cm) |
| Package 2 Width | 11.81 in (30.0 cm) |
| Package 2 Length | 15.75 in (40.0 cm) |
| Package 2 Weight | 4.95 lb(US) (2.246 kg) |
