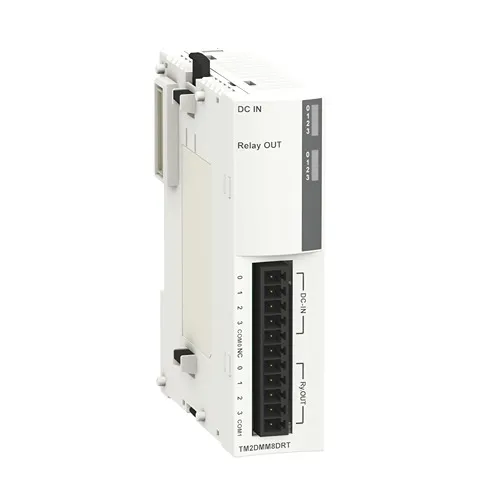

TM2DMM8DRT
Discrete Input/Output Module, Modicon M238 Logic Controller, 4 Inputs 24Vdc, 4 Outputs Relay, 1 Terminal Block
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M238 logic controller |
|---|---|
| product or component type | Discrete I/O module |
| Discrete input number | 4 |
| Discrete input voltage | 24 V |
| discrete input voltage type | DC |
| Discrete output number | 4 |
| discrete output type | Relay |
| Range compatibility | Twido Advantys OTB |
|---|---|
| Input voltage limits | 20.4...28.8 V |
| Discrete input logic | Sink or source |
| Discrete input current | 7 mA |
| Input impedance | 3.4 kOhm |
| Discrete output function | 1 NO |
| Current per channel | 2 A |
| Maximum current per output common | 7 A |
| Number of common point | 1 for output 1 for input |
| Contact resistance | 45 mOhm |
| Response time | 4 ms at state 0 input 4 ms at state 1 input |
| Minimum switching current | 0.1 mA 0.1 V DC |
| Isolation between channels | None |
| Isolation between channels and internal logic | 2300 V for 1 minute (output) 500 V for 1 minute (input) |
| Isolation between input channel and output channel | 1500 V for 1 minute |
| Isolation between output channels group | 1500 V for 1 minute |
| Mechanical durability | 20000000 cycles |
| Electrical durability | 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive 100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive 100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms) 100000 cycles 2 A 240 V AC resistive 100000 cycles 2 A 30 V DC resistive |
| Current consumption | 20 mA 24 V DC at state 1 for all input/output 25 mA 5 V DC at state 1 for all input/output |
| Local signalling | 1 display block |
| Electrical connection | 1 removable screw terminal block |
| Mounting support | 35 mm symmetrical DIN rail |
| net weight | 0.21 lb(US) (0.095 kg) |
| Depth | 2.76 in (70 mm) |
|---|---|
| Height | 3.54 in (90 mm) |
| Width | 1.69 in (42.9 mm) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.95 in (7.5 cm) |
| Package 1 Width | 4.33 in (11 cm) |
| Package 1 Length | 5.12 in (13 cm) |
| Package 1 Weight | 6.77 oz (192 g) |
