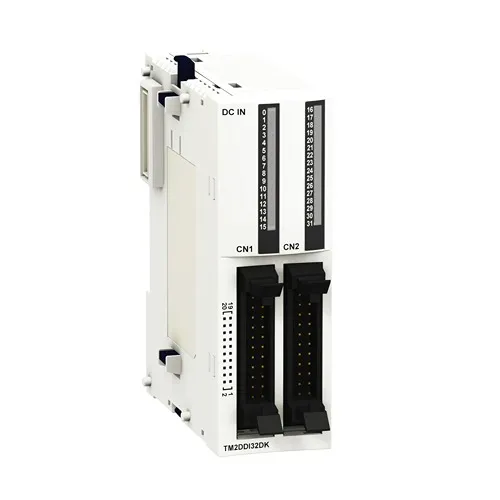

TM2DDI32DK
Discrete Input Module, Modicon M238 Logic Controller, 32 Inputs 24 V Dc, 1 Connector He10
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M238 logic controller |
|---|---|
| product or component type | Discrete input module |
| Discrete input number | 32 |
| Discrete input voltage | 24 V |
| discrete input voltage type | DC |
| Range compatibility | Twido Advantys OTB |
|---|---|
| Input voltage limits | 20.4...28.8 V |
| Discrete input logic | Sink or source |
| Discrete input current | 5 mA |
| Input impedance | 4.4 kOhm |
| Number of common point | 2 |
| Response time | 4 ms at state 0 4 ms at state 1 |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 65 mA 5 V DC at state 1 for all input |
| Local signalling | 2 display blocks |
| Electrical connection | 1 connector HE10 |
| Mounting support | 35 mm symmetrical DIN rail |
| net weight | 0.18 lb(US) (0.081 kg) |
| Depth | 3.20 in (81.3 mm) |
|---|---|
| Height | 3.54 in (90 mm) |
| Width | 1.17 in (29.7 mm) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.97 in (7.552 cm) |
| Package 1 Width | 4.16 in (10.567 cm) |
| Package 1 Length | 5.07 in (12.869 cm) |
| Package 1 Weight | 7.09 oz (201.0 g) |
