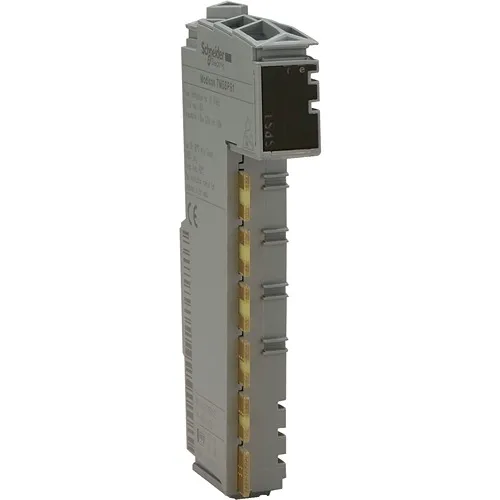

TM5SPS1
Power Distribution Module, Modicon Tm5, For I/O 24 V Dc
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon TM5 |
|---|---|
| product or component type | Power distribution module |
| Product specific application | Supply 24 V DC I/O modules |
| Range compatibility | Modicon M258 Modicon LMC058 |
|---|---|
| Product compatibility | Logic controller Motion controller |
| [Us] rated supply voltage | 24 V |
| Network type | DC |
| current supplied | 10 A I/O power segment |
| Maximum power dissipation in W | 0.8 W |
| Colour | Grey |
| Short-circuit protection | 10 A external fuse |
| Current consumption | |
| marking | CE |
| Standards | CSA C22.2 No 142 CSA C22.2 No 213 UL 508 IEC 61131-2 |
|---|---|
| Product certifications | GOST-R C-Tick cULus CSA |
| Ambient air temperature for operation | 14…131 °F (-10…55 °C) without derating horizontal installation) 131…140 °F (55…60 °C) with derating factor horizontal installation) 14…122 °F (-10…50 °C) vertical installation) |
| ambient air temperature for storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...2000 m |
| Storage altitude | 0.00…9842.52 ft (0…3000 m) |
| Vibration resistance | 1 gn 8.4…150 Hz DIN rail 3.5 mm 5…8.4 Hz DIN rail |
| Shock resistance | 15 gn 11 ms |
| Resistance to electrostatic discharge | 4 kV on contact EN/IEC 61000-4-2 8 kV in air EN/IEC 61000-4-2 |
| Resistance to electromagnetic fields | 0.91 V/yd (1 V/m) 2...2.7 GHz EN/IEC 61000-4-3 9.14 V/yd (10 V/m) 80...2000 MHz EN/IEC 61000-4-3 |
| Resistance to fast transients | 1 kV EN/IEC 61000-4-4 I/O) 1 kV EN/IEC 61000-4-4 shielded cable) 2 kV EN/IEC 61000-4-4 power lines) |
| Surge withstand | 0.5 kV differential mode EN/IEC 61000-4-5 1 kV common mode EN/IEC 61000-4-5 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 |
| Disturbance radiated/conducted | CISPR 11 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.79 in (2.000 cm) |
| Package 1 Width | 2.36 in (6.000 cm) |
| Package 1 Length | 4.17 in (10.600 cm) |
| Package 1 Weight | 1.23 oz (35.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 97 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 8.48 lb(US) (3.847 kg) |
