AUTONICS

    Out Of Stock

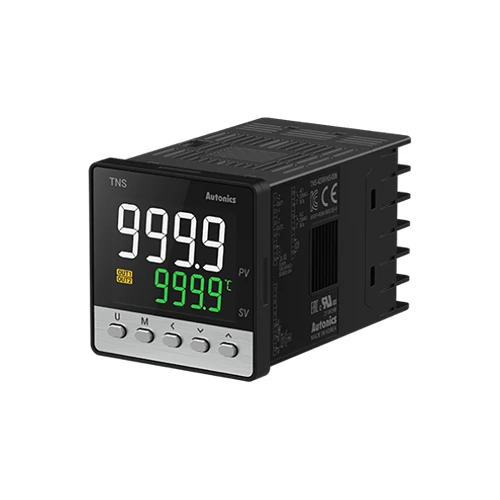

    TNS-42CR-NS-008


    $307.75 $256.46 / each
    1
    TNS-42CR-NS-008
    AUTONICS
    FACTORY SEALED

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Power supply100-240VAC~ 50/60Hz
    Power consumptionMax. 8VA
    Display method11 segment
    Sampling cycle50 / 100 / 250 ms (parameter)
    Option input_CT input• 0.0-50.0 A (primary current measurement range)
    • CT ratio: 1/1
    Option input_Digital inputs• Contact - ON: ≤ 2 kΩ
    Control output_Relay250VAC~ 3A 1a
    Control output_CurrentDC 0 - 20 mA or DC 4 - 20 mA (parameter), Load resistance: ≤ 500 Ω
    Option output_Alarm250VAC~ 3A 1a
    Control type_TypeON/OFF, P, PI, PD, PID
    Control type_Multi SV≤ 4 SV
    Control type_Group PID≤ 8 group
    Control type_Zone PID4 zones
    Control type_ARW50 to 200 %
    Hysteresis• Thermocouple, RTD: 1 to 100 (0.1 to 100.0) ℃/℉
    • Analog: 1 to 100 digit
    Dielectric strengthBetween primary terminal and case: 3,000 VAC~ 50/60 Hz for 1 min
    Vibration0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
    Relay life cycle_Mechanical• OUT1/2: ≥ 5,000,000 operations
    • AL1/2/3/4/5/6: ≥ 20,000,000 operations
    Relay life cycle_Electrical• OUT1/2: ≥ 200,000 operations
    • AL1/2/3/4/5/6: ≥ 100,000 operations
    Insulation resistance≥ 100 MΩ (500 VDCEQ megger)
    Insulation typeDouble insulation or reinforced insulation (mark: INS, dielectric strength between the measuring input part and the power part: 3 kV)
    Noise immunity±2 kV square shaped noise by noise simulator (pulse width: 1 ㎲) R-phase, S-phase
    Memory Protection≈ 10 years (non-volatile semiconductor memory type)
    Ambient temperature-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation)
    Ambient humidity35 to 85%RH
    Protection structureIP65 (Front panel, IEC standards)
    Loader portTop side
    AccessoriesBracket
    Weight128 g
