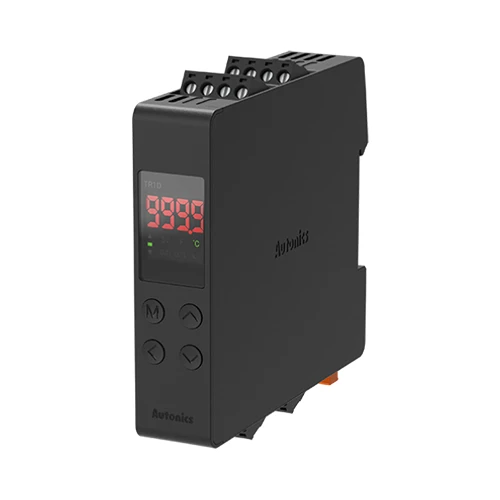

TR1D-R4RR
Single Display Modular Temperature Controller, 2 Relay Output, Alam Output, CT Input, PV Transmission, 100-240VAC
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwidely Fast Shipping.
| Power supply | 100-240VAC~ 50/60Hz |
|---|---|
| Allowable voltage range | 90 to 110% of rated voltage |
| Power consumption | Max. 8VA |
| Sampling cycle | 50, 100, 250ms |
| Input type_RTD | DPt100Ω, Cu50Ω, Nickel120Ω (permissible line resistance max. 5Ω) |
| Input type_TC | K(CA), J(IC), L(IC), T(CC), R(PR), S(PR) |
| Input type_CT | 0.0-50.0A(primary current measurement range) ※CT ratio=1/1000 |
| Display accuracy | RTD/Thermocouple: ㆠAt room temperature (23℃ ±5℃): (PV ±0.3% or ±1℃, select the higher one) ±1-digit ㆠOut of room temperature ranges: (PV ±+H400.5% or ±2℃, select the higher one) ±1-digit |
| Display accuracy_CT input | ±5% F.S. ±1-digit |
| Control output_Relay | 250VAC~ 3A 1a |
| Option output_Alarm | AL1, AL2: 250VAC~ 3A 1a |
| Option output_Trans. | DC 4 - 20 mA (load resistance: ≤ 500 Ω, output accuracy: ±0.3% F.S.) |
| Display method | 7-segment (red) 4-digit |
| Control method | ON/OFF, P, PI, PD, PID |
| Control output_Hysteresis | Control output: 1 to 100℃/℉ (0.1 to 100.0℃/℉) Alarm output: 1 to 100℃/℉ (0.1 to 50.0℃/℉) |
| Proportional band | 0.1 to 999.9℃ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output: 0.5 to 120.0 sec, SSR output: 0.5 to 120.0 sec |
| Dielectric strength | Between the charging part and the case : 3,000 VAC~ 50/60 Hz for 1 min |
| Vibration | 0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours |
| Relay life cycle_Mechanical | OUT1/2, AL1/2: min. 5,000,000 operations |
| Relay life cycle_Electrical | OUT1/2, AL1/2: min. 100,000 (resistance load: 250VAC~ 5A) |
| Insulation resistance | 100MΩ or more (500VDC megger basis) |
| Insulation type | Double insulation or reinforced insulation (dielectric strength between the charging part and the case: 3 kV) |
| Noise immunity | ±2 kV square shaped noise by noise simulator (pulse width: 1 ㎲) R-phase, S-phase |
| Memory Protection | ≈ 10 years (non-volatile semiconductor memory type) |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 194.5g (approx. 123.5g) |
