AUTONICS

    In Stock (10 Available)

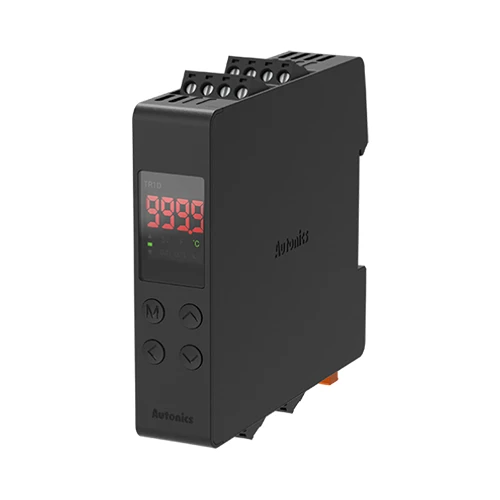

    TR1D-T4RR

    Single Display Modular Temperature Controller, 2 Relay Output, Alam Output, CT Input, RS485, 100-240VAC


    $180.31 $150.26 / each
    1
    TR1D-T4RR
    AUTONICS
    FACTORY SEALED
    Add To Cart Buy Now

    • Quality Assurance

      OEM Quality Spare Parts.

    • Secure Shopping

      100% Money Back Guarantee.

    • 30-DAY RETURNS

      30 Days After-sales Return.

    • Worldwide Delivery

      Worldwidely Fast Shipping.


    Power supply100-240VAC~ 50/60Hz
    Allowable voltage range90 to 110% of rated voltage
    Power consumptionMax. 8VA
    Sampling cycle50, 100, 250ms
    Input type_RTDDPt100Ω, Cu50Ω, Nickel120Ω (permissible line resistance max. 5Ω)
    Input type_TCK(CA), J(IC), L(IC), T(CC), R(PR), S(PR)
    Input type_CT0.0-50.0A(primary current measurement range) ※CT ratio=1/1000
    Display accuracyRTD/Thermocouple: ㆍ At room temperature (23℃ ±5℃): (PV ±0.3% or ±1℃, select the higher one) ±1-digit
    ㆍ Out of room temperature ranges: (PV ±+H400.5% or ±2℃, select the higher one) ±1-digit
    Display accuracy_CT input±5% F.S. ±1-digit
    Control output_Relay250VAC~ 3A 1a
    Option output_AlarmAL1, AL2: 250VAC~ 3A 1a
    Option output_Trans.DC 4 - 20 mA (load resistance: ≤ 500 Ω, output accuracy: ±0.3% F.S.)
    Option output_Comm.RS485 communication output (Modbus RTU/ASCII method)
    Display method7-segment (red) 4-digit
    Control methodON/OFF, P, PI, PD, PID
    Control output_HysteresisControl output: 1 to 100℃/℉ (0.1 to 100.0℃/℉)
    Alarm output: 1 to 100℃/℉ (0.1 to 50.0℃/℉)
    Proportional band0.1 to 999.9℃
    Integral time0 to 9999 sec
    Derivative time0 to 9999 sec
    Control periodRelay output: 0.5 to 120.0 sec, SSR output: 0.5 to 120.0 sec
    Dielectric strengthBetween the charging part and the case : 3,000 VAC~ 50/60 Hz for 1 min
    Vibration0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
    Relay life cycle_MechanicalOUT1/2, AL1/2: min. 5,000,000 operations
    Relay life cycle_ElectricalOUT1/2, AL1/2: min. 100,000 (resistance load: 250VAC~ 5A)
    Insulation resistance100MΩ or more (500VDC megger basis)
    Insulation typeDouble insulation or reinforced insulation (dielectric strength between the charging part and the case: 3 kV)
    Noise immunity±2 kV square shaped noise by noise simulator (pulse width: 1 ㎲) R-phase, S-phase
    Memory Protection≈ 10 years (non-volatile semiconductor memory type)
    Environment_Ambient temperature-10 to 50℃, storage: -20 to 60℃
    Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
    WeightApprox. 194.5g (approx. 123.5g)
