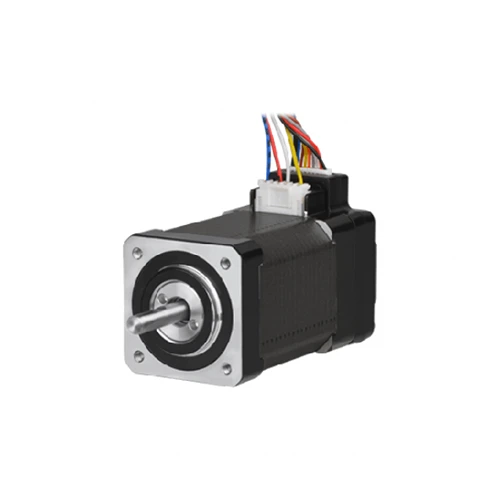

AI-M-35SB
2-Phase Closed-Loop Stepper Motor, 35mm Square, Single Shaft, 1.2A/Phase, 0.714Kgf.cm / 0.07N.m
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Basic Step Angle [FULL/HALF] | 1.8º/0.9º |
|---|---|
| Max. holding torque | 0.714kgf.cm |
| Rotor Moment Of Inertia | 8g·cm² |
| Winding Resistance | 2.1? |
| Rated current | 1.2A/Phase |
| Motor length | 41.5mm |
| Shaft type | Single shaft |
| Operation method | Bipolar |
| Resolution | 16,000PPR(4,000PPR×4-multiply) |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Max. response frequency | 1,000kHz |
| Protection structure | IP30 |
| Motor phase | 2-Phase |
| Number Of Axes | 1-axis |
| Environment_Ambient temperature | 0 to 50℃, storage: -20 to 70℃ |
| Environment_Ambient humidity | 20 to 85%RH, storage: 15 to 90%RH |
| Weight | Approx. 0.278g (approx. 0.180kg) |
The exact weight of the cargo you've scheduled will be measured at the QUANTUM FIRST AUTOMATION office. We will send you an email with a payment link if the weight difference is larger than the shipment amount. The payment link email will include the new weight and the difference amount that must be paid. If you have any queries concerning this procedure, please contact our customer support team at +1-905-625-3500.
