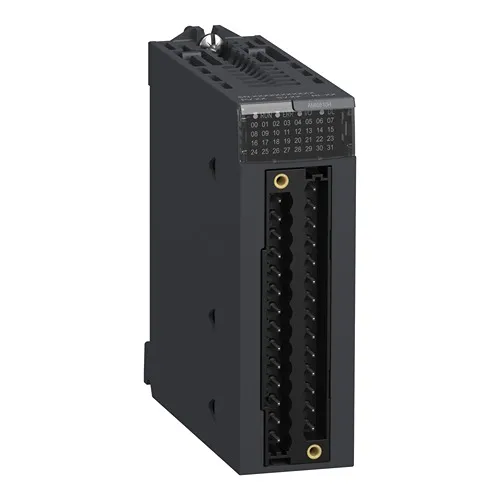

BMXAMI0810H
Analog Isolated High Level Input Module, Modicon X80, 8 I, 0 To 20Ma, 4 To 20Ma, 10V Positive Or Negative, Severe Environment
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon X80 |
|---|---|
| product or component type | Analog input module |
| Product specific application | For severe environments |
| Electrical connection | 28 ways 1 connector |
| Isolation between channels | Isolated |
| Input level | High level |
| analogue input number | 8 |
| Analogue input type | Current +/- 20 mA Current 0...20 mA Current 4...20 mA Voltage +/- 10 V Voltage +/- 5 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V |
| Analog/digital conversion | 16 bits |
|---|---|
| Analogue input resolution | 15 bits + sign |
| Permitted overload on inputs | +/- 30 mA 0...20 mA +/- 30 mA 4...20 mA +/- 30 V +/- 10 V +/- 30 V +/- 5 V +/- 30 V 0...10 V +/- 30 V 0...5 V +/- 30 V 1...5 V +/- 30 mA +/- 20 mA |
| Input impedance | 10 MOhm in voltage mode 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode |
| Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| type of filter | First order digital filtering |
| Fast read cycle time | 1 ms + 1 ms x number of channels used |
| Nominal read cycle time | 9 ms for 8 channels |
| Measurement error | 0.15 % of full scale +/- 20 mA 25 °C 0.15 % of full scale 0...20 mA 25 °C 0.15 % of full scale 4...20 mA 25 °C 0.075 % of full scale +/- 10 V 25 °C 0.075 % of full scale 0...10 V 25 °C 0.075 % of full scale 0...5 V 25 °C 0.075 % of full scale 1...5 V 25 °C 0.075 % of full scale +/- 5 V 25 °C |
| Temperature drift | 30 ppm/°C +/- 10 V 30 ppm/°C +/- 5 V 30 ppm/°C 0...10 V 30 ppm/°C 0...5 V 30 ppm/°C 1...5 V 50 ppm/°C +/- 20 mA 50 ppm/°C 0...20 mA 50 ppm/°C 4...20 mA |
| Minimum crosstalk attenuation | 80 dB |
| Common mode rejection | 80 dB |
| Digital value format | - 32768 to + 32767 in maximum user scale +/- 10000 by default |
| Isolation voltage | 300 V DC between channels 1400 V DC between channels and ground 1400 V DC between channels and bus |
| Measurement resolution | 0.36 mV +/- 10 V 0.36 mV 0...10 V 0.36 mV 0...5 V 0.36 mV 1...5 V 0.36 mV +/- 5 V 1.4 µA +/- 20 mA 1.4 µA 0...20 mA 1.4 µA 4...20 mA |
| Maximum conversion value | +/- 11.4 V +/- 10 V +/- 11.4 V 0...10 V +/- 11.4 V 0...5 V +/- 11.4 V 1...5 V 0...30 mA +/- 20 mA 0...30 mA 0...20 mA 0...30 mA 4...20 mA 0...30 mA +/- 5 V |
| MTBF reliability | 900000 H |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O |
| net weight | 0.39 lb(US) (0.175 kg) |
| Power consumption in W | 1.06 W 24 V DC typical 1.50 W 24 V DC maximum 0.32 W 3.3 V DC typical 0.48 W 3.3 V DC maximum |
| Current consumption | 150 mA 3.3 V DC 54 mA 24 V DC |
| Vibration resistance | 3 gn |
|---|---|
| Shock resistance | 30 gn |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE RCM CSA EAC Merchant Navy UL ATEX IEC-Ex |
| Standards | EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| Environmental characteristic | Gas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 Hazardous location |
| protective treatment | Conformal coating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 4.33 in (11.000 cm) |
| Package 1 Length | 4.57 in (11.600 cm) |
| Package 1 Weight | 5.93 oz (168.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 6.29 lb(US) (2.855 kg) |
