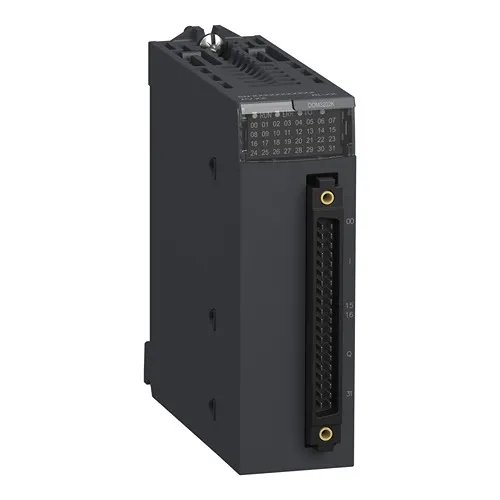

BMXDDM3202K
Discrete Mixed Io Module, Modicon X80, 16 Inputs, 16 Outputs, 24V Dc Positive
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon X80 |
|---|---|
| product or component type | Discrete I/O module |
| Discrete input number | 16 |
| Input type | Current sink (logic positive) |
| Discrete input voltage | 24 V DC positive |
| Discrete input current | 2.5 mA |
| Discrete output number | 16 |
| discrete output type | Solid state |
| Discrete output voltage | 24 V 19...30 V DC |
| discrete output current | 0.1 A |
| Input compatibility | With 2-wire/3-wire proximity sensors IEC 60947-5-2 With 2-wire/3-wire proximity sensors IEC 61131-2 Type 1 |
|---|---|
| Sensor power supply | 19...30 V |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | |
| Current per channel | 0.125 A |
| Maximum current per module | 3.2 A |
| Maximum leakage current | 0.1 mA at state 0 |
| Maximum voltage drop | |
| Input impedance | 9600 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
| Power dissipation in W | 4 W |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| Response time on output | 1.2 ms |
| Paralleling of outputs | Yes : 3 maximum |
| Typical current consumption | 69 mA 24 V DC 125 mA 3.3 V DC |
| Current consumption | |
| MTBF reliability | 430000 H |
| Protection type | 1 external fuse per group of input channel 0.5 A fast blow overvoltage protection on output reverse polarity protection on input reverse polarity protection on output |
| Output overload protection | With electronic circuit breaker 0.125 A With current limiter |
| Output overvoltage protection | With transil diode |
| Output short-circuit protection | With 2 A external fuse |
| Reverse polarity protection | Reverse mounted diode |
| Voltage detection threshold | > 18 V DC preactuator OK > 18 V DC sensor OK |
| Maximum tungsten load | 1.2 W |
| Switching frequency | 0.5/LI² Hz |
| Maximum overload time | 15 ms |
| Load impedance ohmic | |
| Status LED | 1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O |
| net weight | 0.24 lb(US) (0.11 kg) |
| IP degree of protection | IP20 |
|---|---|
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC 50/60 Hz 1 minute, output/ground 1500 V AC 50/60 Hz 1 minute, output/internal logic 1500 V AC 50/60 Hz 1 minute, primary/secondary 500 V DC 1 minute, between group of inputs and outputs |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.17 in (5.500 cm) |
| Package 1 Width | 4.53 in (11.500 cm) |
| Package 1 Length | 4.61 in (11.700 cm) |
| Package 1 Weight | 4.73 oz (134.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 5.91 in (15.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 5.19 lb(US) (2.355 kg) |
