TM3DM8R

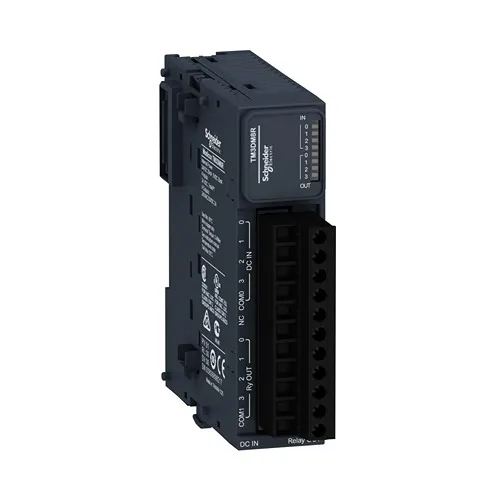

Discrete I/O Module, Modicon Tm3, 8 Io, 4 Inputs, 4 Relay Outputs, Screw, 24V Dc
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon TM3 |
|---|---|
| product or component type | Discrete I/O module |
| Range compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Discrete input number | 4 input IEC 61131-2 Type 1 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| Discrete input current | 7 mA input |
| discrete output type | Relay normally open |
| Discrete output number | 4 |
| discrete output logic | Positive or negative |
| Discrete output voltage | 24 V DC relay output 240 V AC relay output |
| Discrete output current | 2000 mA relay output |
| Discrete I/O number | 8 |
|---|---|
| Current consumption | 5 mA 5 V DC via bus connector at state off) 0 mA 24 V DC via bus connector at state on) 0 mA 24 V DC via bus connector at state off) 25 mA 5 V DC via bus connector at state on) |
| discrete input voltage type | DC |
| Voltage state 1 guaranteed | 15...28.8 V input |
| Current state 1 guaranteed | >= 2.5 mA input) |
| Voltage state 0 guaranteed | 0...5 V input |
| Current state 0 guaranteed | |
| Input impedance | 3.4 kOhm |
| Response time | 4 ms turn-on) 4 ms turn-off) |
| Maximum current per output common | 7 A |
| Mechanical durability | 20000000 cycles |
| Minimum load | 10 mA 5 V DC relay output |
| Local signalling | I/O state 1 LED per channel green) |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for inputs and outputs |
| Maximum cable distance between devices | Unshielded cable |
| Insulation | Between input and internal logic 500 V AC Non-insulated between inputs Between input groups and output groups 1500 V AC Between open contact 750 V AC Between output and internal logic 500 V AC Non-insulated between outputs |
| marking | CE |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.54 in (90 mm) |
| Depth | 3.33 in (84.6 mm) |
| Width | 1.08 in (27.4 mm) |
| net weight | 2.09 lb(US) (0.95 kg) |
| Standards | IEC 61131-2 |
|---|---|
| Product certifications | cULus CE UKCA RCM EAC cULus HazLoc |
| Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.14 V/yd (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.74 V/yd (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.91 V/yd (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 |
| Resistance to magnetic fields | 98.43 A/ft (30 A/m) 50/60 Hz IEC 61000-4-8 |
| Resistance to fast transients | 1 kV I/OIEC 61000-4-4 2 kV relay outputIEC 61000-4-4 |
| Surge withstand | 2 kV output common mode IEC 61000-4-5 1 kV input common mode IEC 61000-4-5 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
| Ambient air temperature for operation | 14…95 °F (-10…35 °C) vertical installation 14…131 °F (-10…55 °C) horizontal installation |
| ambient air temperature for storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 %, without condensation in operation) 10…95 %, without condensation in storage) |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0.00…9842.52 ft (0…3000 m) |
| Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail 3 gn 8.4…150 Hz DIN rail 3.5 mm 5…8.4 Hz panel 3 gn 8.4…150 Hz panel |
| Shock resistance | 15 gn 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.95 in (7.5 cm) |
| Package 1 Width | 4.92 in (12.5 cm) |
| Package 1 Length | 4.13 in (10.5 cm) |
| Package 1 Weight | 8.11 oz (230.0 g) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 11.81 in (30 cm) |
| Package 2 Width | 15.75 in (40 cm) |
| Package 2 Length | 23.62 in (60 cm) |
| Package 2 Weight | 23.46 lb(US) (10.643 kg) |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 504 |
| Package 3 Height | 41.34 in (105 cm) |
| Package 3 Width | 47.24 in (120 cm) |
| Package 3 Length | 31.50 in (80 cm) |
| Package 3 Weight | 304.24 lb(US) (138 kg) |
