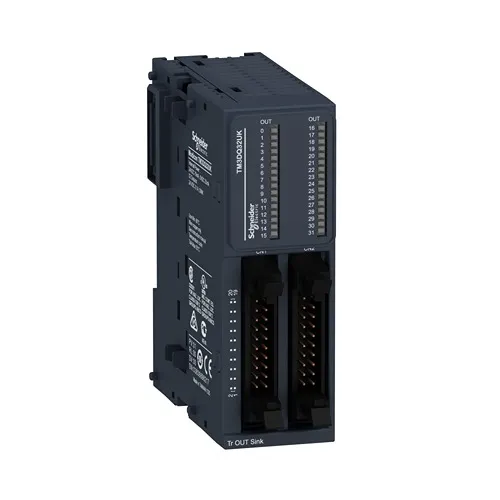

TM3DQ32UK
Discrete Output Module, Modicon Tm3, 32 Outputs Transistor Npn, He10
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon TM3 |
|---|---|
| product or component type | Discrete output module |
| Range compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| discrete output type | Transistor |
| Discrete output number | 32 |
| discrete output logic | Negative logic (sink) |
| Discrete output voltage | 24 V DC transistor output |
| Discrete output current | 100 mA transistor output |
| Discrete I/O number | 32 |
|---|---|
| Current consumption | 5 mA 5 V DC via bus connector at state off) 0 mA 24 V DC via bus connector at state off) 25 mA 5 V DC via bus connector at state on) 40 mA 24 V DC via bus connector at state on) |
| Response time | 450 µs turn-on) 450 µs turn-off) |
| Maximum leakage current | 0.1 mA transistor output |
| Maximum voltage drop | |
| Maximum tungsten load | |
| Local signalling | Output status 1 LED per channel green) |
| Electrical connection | HE-10 connector for outputs |
| Maximum cable distance between devices | Unshielded cable |
| Insulation | Between output and internal logic 500 V AC Non-insulated between outputs |
| marking | CE |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 plate or panel with fixing kit |
| Height | 3.54 in (90 mm) |
| Depth | 3.20 in (81.3 mm) |
| Width | 1.32 in (33.5 mm) |
| net weight | 0.25 lb(US) (0.112 kg) |
| Standards | IEC 61131-2 |
|---|---|
| Product certifications | cULus CE UKCA RCM EAC cULus HazLoc |
| Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2 4 kV on contact IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.14 V/yd (10 V/m) 80 MHz...1 GHz IEC 61000-4-3 2.74 V/yd (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3 0.91 V/yd (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 |
| Resistance to magnetic fields | 98.43 A/ft (30 A/m) 50/60 Hz IEC 61000-4-8 |
| Resistance to fast transients | 1 kV I/OIEC 61000-4-4 |
| Surge withstand | 1 kV I/O common mode IEC 61000-4-5 DC |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011 Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
| Ambient air temperature for operation | 14…95 °F (-10…35 °C) vertical installation 14…131 °F (-10…55 °C) horizontal installation |
| ambient air temperature for storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 %, without condensation in operation) 10…95 %, without condensation in storage) |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0.00…9842.52 ft (0…3000 m) |
| Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail 3 gn 8.4…150 Hz DIN rail 3.5 mm 5…8.4 Hz panel 3 gn 8.4…150 Hz panel |
| Shock resistance | 15 gn 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.99 in (7.594 cm) |
| Package 1 Width | 4.19 in (10.647 cm) |
| Package 1 Length | 5.03 in (12.775 cm) |
| Package 1 Weight | 7.76 oz (220.0 g) |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 6.10 in (15.5 cm) |
| Package 2 Width | 11.69 in (29.7 cm) |
| Package 2 Length | 15.83 in (40.2 cm) |
| Package 2 Weight | 5.32 lb(US) (2.411 kg) |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 288 |
| Package 3 Height | 29.53 in (75 cm) |
| Package 3 Width | 47.24 in (120 cm) |
| Package 3 Length | 31.50 in (80 cm) |
| Package 3 Weight | 187.39 lb(US) (85 kg) |
