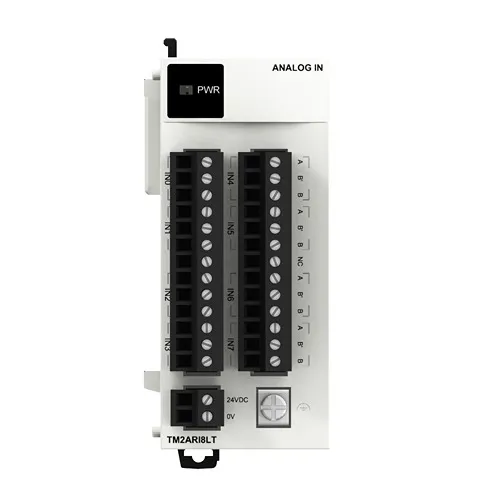

TM2ARI8LT
Analog Input Module, Modicon M238 Logic Controller, 8 Inputs, 200 To 600 °C, 12 Bits, 24Vdc, Screw Terminal Blocks
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M238 logic controller |
|---|---|
| product or component type | Analog input module |
| analogue input number | 8 |
| Analogue input type | Pt 100 temperature probe - 200...600 °C non differential Pt 1000 temperature probe - 50...200 °C non differential |
| Range compatibility | Twido Advantys OTB |
|---|---|
| Analogue input resolution | 12 bits |
| LSB value | 0.006 °C Pt 1000 0.2 °C Pt 100 |
| Input impedance | >= 10 kOhm |
| Sampling duration | 160 ms |
| Acquisition period | 320 ms per group of channel + 1 controller cycle time |
| Measurement error | +/- 0.3 % of full scale Pt 1000 25 °C +/- 0.5 % of full scale Pt 100 25 °C |
| Temperature coefficient | +/-0.01 %FS/°C |
| Repeat accuracy | +/- 0.1 °C |
| Total error | 1 °C Pt 1000 4 °C Pt 100 |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…30 V |
| Electrical connection | 1 removable screw terminal block power supply 1 removable screw terminal block sensors |
| Current consumption | 90 mA 5 V DC internal |
| net weight | 0.42 lb(US) (0.19 kg) |
| Dielectric strength | 500 V between the I/O and the external supply circuit 2500 V between the I/O and internal logic |
|---|---|
| Width | 3.54 in (90 mm) |
| Depth | 2.76 in (70 mm) |
| Height | 3.54 in (90 mm) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.95 in (7.5 cm) |
| Package 1 Width | 4.13 in (10.5 cm) |
| Package 1 Length | 4.92 in (12.5 cm) |
| Package 1 Weight | 7.37 oz (209.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 11.81 in (30.0 cm) |
| Package 2 Width | 11.81 in (30.0 cm) |
| Package 2 Length | 15.75 in (40.0 cm) |
| Package 2 Weight | 8.29 lb(US) (3.762 kg) |
