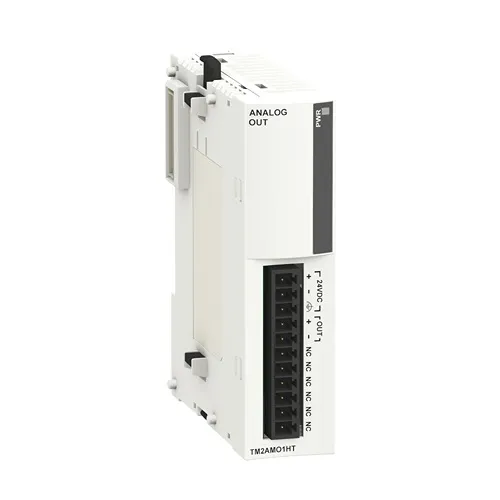

TM2AMO1HT
Analog Output Module, Modicon M238 Logic Controller, 1 Output Voltage/Current, 1 Screw Terminal Block
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M238 logic controller |
|---|---|
| product or component type | Analog output module |
| analogue output number | 1 |
| Analogue output type | Current 4...20 mA Voltage 0...10 V |
| Range compatibility | Advantys OTB Twido |
|---|---|
| analogue output resolution | 12 bits |
| LSB value | 2.5 mV voltage voltage 4.8 µA current current |
| Load type | Resistive |
| Load impedance ohmic | >= 2000 Ohm voltage |
| Stabilisation time | 10 ms |
| Conversion time | 10 ms + 1 controller cycle time |
| Measurement error | +/- 0.2 % of full scale 25 °C |
| Temperature coefficient | +/-0.015 %FS/°C |
| Repeat accuracy | +/-0.5 %FS |
| Non-linearity | +/- 0.2 %FS |
| Output ripple | |
| Total error | +/-1 %FS |
| Type of cable | Twisted shielded cable |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…30 V |
| Electrical connection | 1 removable screw terminal block |
| Current consumption | 50 mA 5 V DC internal 40 mA 24 V DC external |
| net weight | 0.19 lb(US) (0.085 kg) |
| Dielectric strength | 500 V between the I/O and the external supply circuit 500 V between the I/O and internal logic |
|---|---|
| Width | 0.93 in (23.5 mm) |
| Depth | 2.76 in (70 mm) |
| Height | 3.54 in (90 mm) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.87 in (7.3 cm) |
| Package 1 Width | 4.06 in (10.3 cm) |
| Package 1 Length | 4.92 in (12.5 cm) |
| Package 1 Weight | 6.91 oz (196.0 g) |
