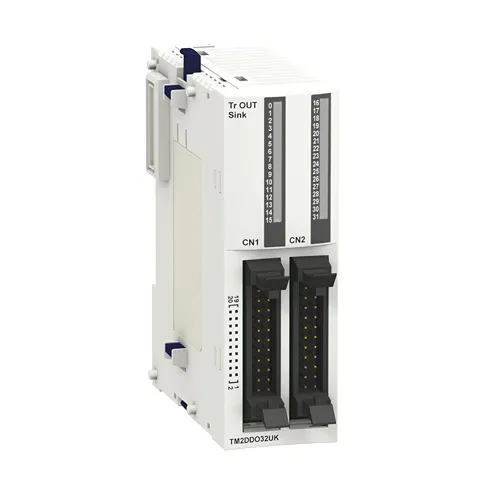

TM2DDO32UK
Discrete Output Module, Modicon M238 Logic Controller, 32 Outputs 24 V Transistor, 1 Connector He10
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M238 logic controller |
|---|---|
| product or component type | Discrete output module |
| Discrete output number | 32 |
| discrete output type | Transistor |
| Discrete output voltage | 24 V |
| discrete output logic | Sink |
| discrete output current | 0.1 A |
| Range compatibility | Advantys OTB Twido |
|---|---|
| Output voltage limits | 20.4...28.8 V |
| Current per channel | 0.12 A |
| Maximum current per output common | 1 A |
| Number of common point | 2 |
| Response time | 300 µs from state 0 to state 1 300 µs from state 1 to state 0 |
| [Ures] residual voltage | 1 V at state 1 |
| Maximum tungsten load | 8 W |
| Short-circuit protection | Without |
| Overload protection | Without |
| Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 20 mA 5 V DC at state 1 for all output 70 mA 24 V DC at state 1 for all output |
| Local signalling | 2 display blocks |
| Electrical connection | 1 connector HE10 |
| Mounting support | 35 mm symmetrical DIN rail |
| net weight | 0.23 lb(US) (0.105 kg) |
| Depth | 3.20 in (81.3 mm) |
|---|---|
| Height | 3.54 in (90 mm) |
| Width | 1.32 in (33.5 mm) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.95 in (7.5 cm) |
| Package 1 Width | 4.13 in (10.5 cm) |
| Package 1 Length | 5.12 in (13.0 cm) |
| Package 1 Weight | 7.23 oz (205.0 g) |
