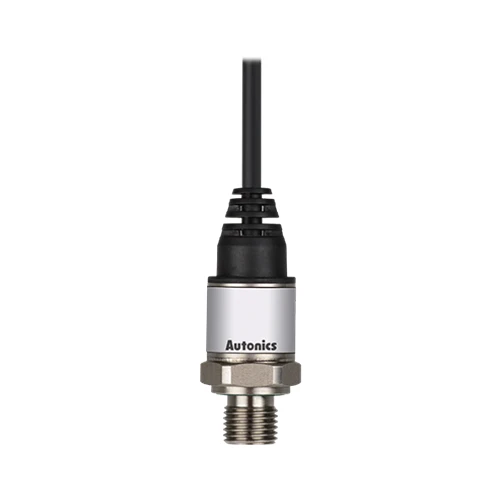

TPS30-G56VG4-00

Pressure Transmitter, Gauge Pressure, Cable Type, 0 to 1Mpa, 1-5 VDC Output, PF1/4"

TRANSMITTER

||

AUTONICS

5.00 10

10 Review(s)
$197.60 $164.67 / each
1
TPS30-G56VG4-00
AUTONICS
FACTORY SEALED
  • Quality-checked industrial automation parts
  • Secure ordering with responsive customer support
  • Worldwide shipping for critical replacement parts
Fast Delivery
Top Brands
Worldwide Delivery
Secure Transaction

  • Quality Assurance

    OEM Quality Spare Parts.

  • Secure Shopping

    100% Money Back Guarantee.

  • 30-DAY RETURNS

    30 Days After-sales Return.

  • Worldwide Delivery

    Worldwide Fast Shipping.

Measured materialsLiquid, gas, oil (lnappropriate to corrosion environment for stainless steel 316L)
Power supply8-36VDC EQ (ripple P-P: max. 10%)
AccuracyMax. ±0.5% F.S. (including linearity, hysteresis, reproducibility)
LinearityMax. ±0.2% F.S.
HysteresisMax. ±0.2% F.S.
Environment_Ambient temperature-40 to 80℃, storage: -40 to 80℃
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
Environment_Fluid temperature-40 to 125℃
Protection structureIP67(IEC standard)
MaterialStainless steel 316L (head part of head type: aluminium diecasting), connector: Polybutylene terephthalate G30,
water-proof rubber: silicon
Measurement pressureGauge pressure
Connection typeCable type
Pressure range0 to 1MPa
WeightApprox. 200g(approx. 120g)
Output specificationVoltage(1-5VDC EQ) output
Pressure portG1/4(PF)(EN837)
