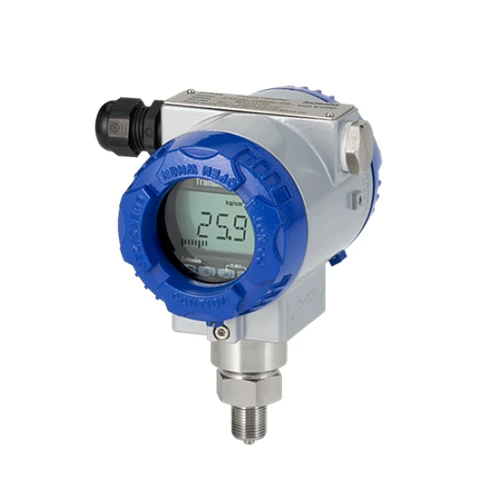

PTF30-A4NN-F8
Standard Pressure Transmitter, Absolute Pressure, 0.00 to 7.00kgf/cm2, PF3/8"
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Series | PTF30 | |
| Measured materials | Vapor, Liquid, Fluid (except corrosive environment of SUS316) | |
| Power supply | 15-35VDC | |
| Display method | 4 digit 12 Segment LCD Display | |
| Character size | W 6.24×H10.73mm (12 Segment) / W1.45×H2.5mm (unit) | |
| Output | DC4-20mA 2-wire Low-limit : 3.6mA(-2.5%), High-limit : 21.6mA (+10%) | |
| Accuracy ※1 | 10% of Span < URL: ±(0.05 + 0.015 URL/Span)% of Span 10% of Span = URL: ±0.2% of Span | |
| Temperature characteristics | At 20°C, ±(0.075% × URL + 0.15% × Span) | |
| Setting method | Setting by front push keys | |
| Sampling cycle | 300ms | |
| Dielectric resistance | 1000VAC for 1 min. (between external terminal and case) | |
| Vibration | 0.75mm amplitude at frequency of 5 to 55Hz (for 1 min.) in each of X, Y, Z directions for 2 hours | |
| Insulation resistance | Min. 100MΩ (at 500VDC megger) | |
| Noise resistance | Square shaped noise by noise simulator (pulse width 1μs)±240V | |
| Memory protection | Approx. 10 years (non-volatile semiconductor memory type) | |
| Environment | Ambient temperature | -20 to 70°C, storage: -20 to 80°C |
| Ambient humidity | 0 to 85%RH | |
| Material | Body : Aluminum(AlDc.8S), Cover O-Ring : Buna N, Diaphragm : SUS316, Connections : SUS316 | |
| Explosion class ※2 | Ex d IIC T6 IP67 | |
| Approval | CE | |
| Unit weight | 1.2kg | |
