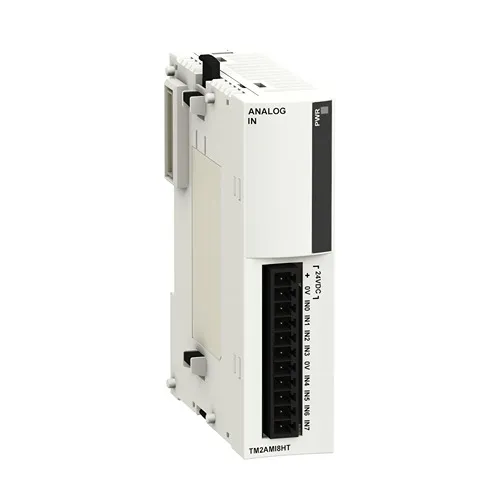

TM2AMI8HT
I/O Expansion Module, Modicon M238 Logic Controller, Twido, 8 Inputs Voltage/Current, Non Differential, Wear Part
/ each
-
-
Secure Shopping
100% Money Back Guarantee.
-
30-DAY RETURNS
30 Days After-sales Return.
-
Worldwide Delivery
Worldwide Fast Shipping.
| Range of product | Modicon M238 logic controller |
|---|---|
| product or component type | I/O expansion module |
| analogue input number | 8 |
| Analogue input type | Current 4...20 mA non differential voltage 0...10 V non differential |
| Cross talk |
| Range compatibility | Twido Advantys OTB |
|---|---|
| Analogue input resolution | 10 bits |
| LSB value | 19.5 µA current 9.7 mV voltage |
| Permissible continuous overload | 40 mA current 13 V voltage |
| Input impedance | >= 10 kOhm voltage 470 Ohm current |
| Sampling duration | 160 ms |
| Acquisition period | 160 ms per channel + 1 controller cycle time |
| Measurement error | +/- 0.2 % of full scale 25 °C |
| Temperature coefficient | +/-0.01 %FS/°C |
| Repeat accuracy | +/- 0.4 %FS |
| Non-linearity | +/- 0.002 %FS |
| Total error | +/-1 %FS |
| Type of cable | Shielded cable |
| Insulation between channel and internal logic | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Electrical connection | 1 removable screw terminal block power supply 1 removable screw terminal block sensors |
| Current consumption | 45 mA 24 V DC external 60 mA 5 V DC internal |
| net weight | 0.19 lb(US) (0.085 kg) |
| Dielectric strength | 2500 V between the I/O and internal logic |
|---|---|
| Width | 0.93 in (23.5 mm) |
| Depth | 2.76 in (70 mm) |
| Height | 3.54 in (90 mm) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.95 in (7.5 cm) |
| Package 1 Width | 4.13 in (10.5 cm) |
| Package 1 Length | 4.92 in (12.5 cm) |
| Package 1 Weight | 5.08 oz (144.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 11.81 in (30.0 cm) |
| Package 2 Width | 11.81 in (30.0 cm) |
| Package 2 Length | 15.75 in (40.0 cm) |
| Package 2 Weight | 6.85 lb(US) (3.107 kg) |
